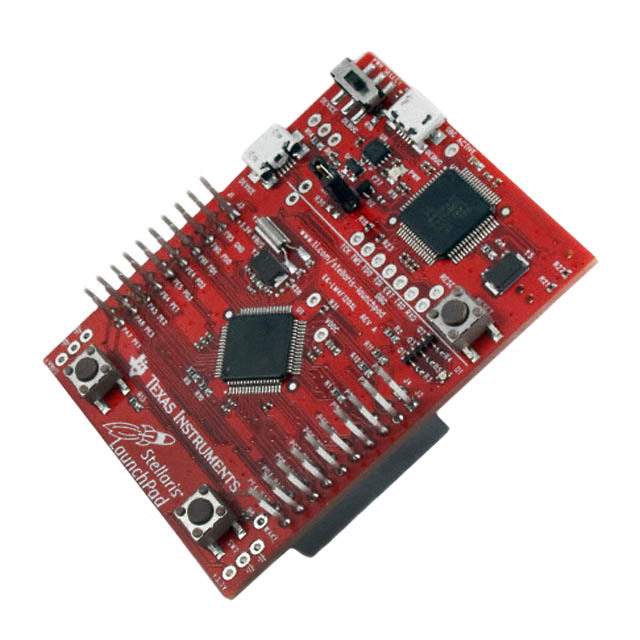

The EK-LM4F120XL, also known as the Stellaris LM4F120 LaunchPad Evaluation Kit, is a compact and versatile development platform from Texas Instruments. This kit enables engineers and hobbyists to explore the capabilities of the ARM Cortex-M4F based microcontrollers for embedded applications. The Stellaris LaunchPad is designed to provide a low-cost, user-friendly way to jumpstart development on the Stellaris LM4F120H5QR microcontroller.

Key Features

• Processor: The board is built around a 32-bit ARM Cortex-M4F CPU, which operates at up to 80 MHz, delivering high performance and efficient processing with floating-point support.
• Memory: It comes with 256KB of Flash memory and 32KB of SRAM, providing ample space for complex applications and software stacks.
• Expandability: The EK-LM4F120XL includes two 14-pin stackable BoosterPack XL headers, which support a wide range of add-on boards for additional functionality such as wireless, displays, and sensors.
• On-board Debugging: The board features integrated In-Circuit Debug Interface (ICDI) which allows for straightforward debugging and programming without the need for additional hardware.
• USB Connectivity: A user-friendly USB interface for both power and data, with a Micro-AB USB connector capable of acting as a USB host or device.
• RGB User LED: An RGB LED is provided for visual feedback and can be controlled via software for various indications.
• Push Buttons: Two user switches (one for reset and another for user-defined function) offer interactive hardware control.

Software Support

The EK-LM4F120XL is supported by Texas Instruments' comprehensive software ecosystem, which includes the TivaWare for C Series software suite. This suite provides a broad range of software solutions such as peripheral drivers, real-time operating system (RTOS) support, and example applications to assist developers in fully utilizing the capabilities of the microcontroller.

Applications

With its rich set of features and extensive software support, the EK-LM4F120XL is an ideal platform for a variety of applications, including industrial control, home automation, medical devices, and portable instrumentation. Its ease of use and expandability make it suitable for both professional developers and educators or students alike.
