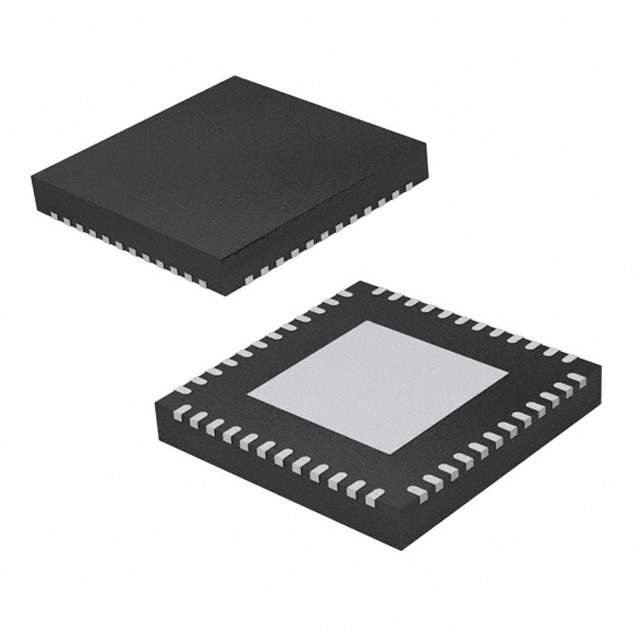

The DS90UB914QSQX is a state-of-the-art serializer from Texas Instruments, designed to provide a robust, high-speed data communication channel for automotive and industrial applications. This device is part of the FPD-Link III family, which is renowned for its ability to transmit high-speed data over a single differential pair with excellent data integrity and EMI performance.

Key Features

• Supports high-speed forward channel transmission at up to 100 MHz pixel clock.
• Robust against electromagnetic interference (EMI) thanks to its low-voltage differential signaling (LVDS) technology.
• Backward-compatible with FPD-Link II serializers, ensuring a smooth transition for legacy systems.
• Integrated bidirectional control channel allows for I2C communication, GPIO, and interrupts without additional wires.
• Automatic adaptation to data rate without external control, providing ease of use and design flexibility.
• Support for a wide operating temperature range, making it suitable for harsh environmental conditions.

Applications

The DS90UB914QSQX is ideal for a variety of applications, particularly in the automotive sector, where reliable data transmission is crucial. It is commonly used in:

• Automotive infotainment and driver assistance systems (ADAS).
• Rearview and surround-view camera systems.
• Driver monitoring and night vision systems.
• Industrial machine vision and video surveillance systems.

Technical Specifications

DS90UB914QSQX is not only designed to meet the rigorous demands of automotive and industrial environments but also to simplify system design and reduce overall system cost. The integration of advanced features into a small form factor makes it an excellent choice for designers looking to incorporate high-speed data transmission with reliability and flexibility.
