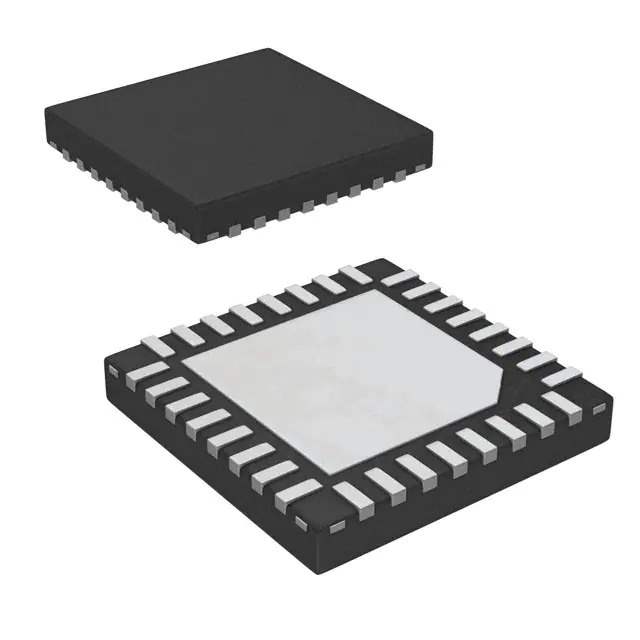

Product Overview: Texas Instruments DS90CP04TLQ

The DS90CP04TLQ is a high-performance quad differential line driver designed for applications requiring ultra low power dissipation and high data rates. Manufactured by Texas Instruments, this device is part of their broad portfolio of interface solutions that cater to a wide range of advanced electronics.

The DS90CP04TLQ utilizes LVDS (Low-Voltage Differential Signaling) technology to transmit data at high speeds while minimizing power consumption and electromagnetic interference. This makes it an ideal choice for demanding applications such as gigabit Ethernet, automotive infotainment systems, telecommunications, and data communication networks.

Featuring a wide data bandwidth that supports data rates up to 800 Mbps, the DS90CP04TLQ ensures that your system can handle high-speed data transfer with ease. The device is optimized for balanced data transmission and receives differential input signals that it then converts to LVDS output signals.

The DS90CP04TLQ is designed with the end-user in mind, offering features such as a flow-through pinout for easy PCB layout and minimal cross-talk, as well as a power-down mode that significantly reduces power consumption when the device is not in active use. Additionally, the device is characterized for operation from -40°C to +85°C, ensuring reliable performance across various environmental conditions.

The device comes in a compact TSSOP (Thin Shrink Small Outline Package) footprint, which is suitable for space-constrained applications. The DS90CP04TLQ also meets or exceeds the requirements of the ANSI TIA/EIA-644-A standard, ensuring compatibility with other LVDS technology-based components.

In summary, the Texas Instruments DS90CP04TLQ is a robust and reliable solution for high-speed data transfer in a variety of applications. Its low-power, high-speed capabilities, and adherence to industry standards make it a versatile and essential component for modern electronic systems.
