DRV8402DKD Texas Instruments

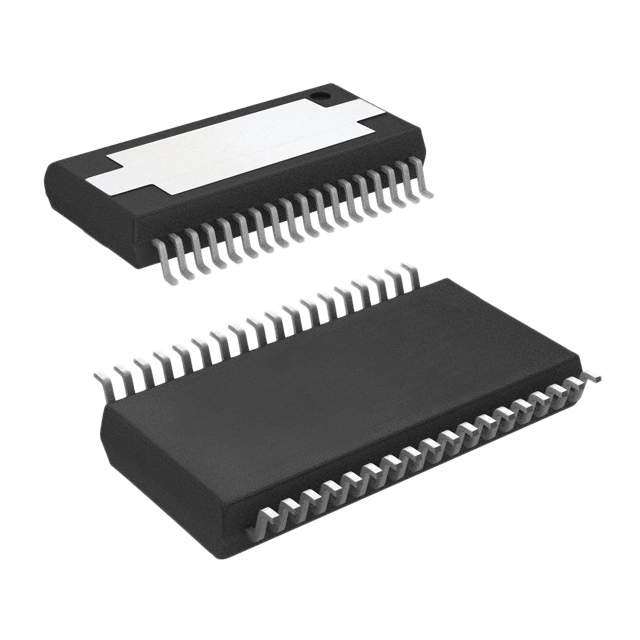

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Texas Instruments
Package Tube
Product Status Obsolete
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushless DC (BLDC), Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology Power MOSFET
Applications General Purpose
Current - Output 5A
Voltage - Supply 11.4V ~ 13.2V
Voltage - Load 0V ~ 52.5V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package 36-HSSOP
Base Product Number DRV8402
Standard Package 29 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 110932-DRV8402DKD
Ultra Librarian 3D Model Ultra Librarian DRV8402DKD CAD Model

Description

DRV8402DKD: Dual Full-Bridge PWM Motor Driver

The DRV8402DKD is an advanced motor driver designed to handle dual full-bridge operations, making it suitable for high-performance motor control applications. Its sophisticated design ensures seamless integration and superior control over various motor types.

  • High-performance audio systems
  • Advanced CNC machinery
  • Precision control instruments

Features and Benefits

  • Dual full-bridge PWM support: Facilitates diverse motor configurations with precise control.
  • Flexible operation modes: Offers adaptability to various control schemes.
  • Overcurrent and thermal protection: Enhances motor and driver longevity.

Additional Details

The DRV8402DKD is designed for use in systems requiring high precision and reliability, making it ideal for demanding industrial and audio applications.
