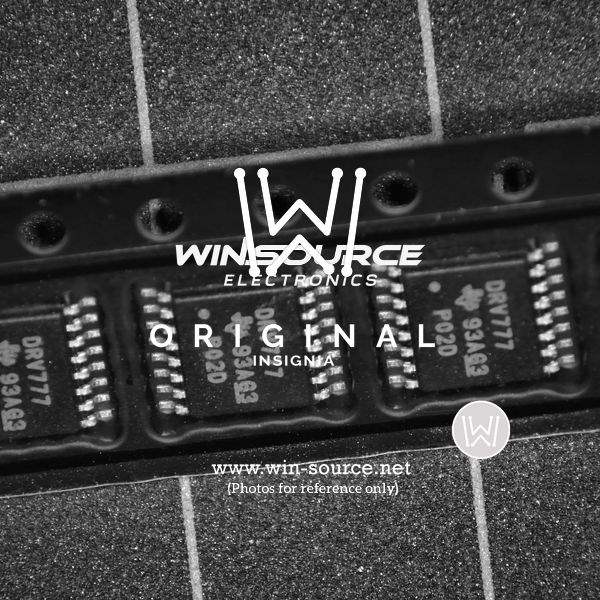

The DRV777PWR is a highly integrated motor driver solution from Texas Instruments, designed to efficiently drive a single brushed DC motor. This compact and versatile driver is ideal for a wide range of applications including consumer electronics, home appliances, office automation, and battery-powered devices.

Key Features

• Voltage Range: The DRV777PWR operates on a motor power supply voltage range of 2.5V to 16V, making it suitable for various low-voltage applications.
• Output Current: It is capable of delivering an output current of up to 1A continuous, with peak currents up to 2A, ensuring robust performance for a variety of motor control scenarios.
• Integrated Protection: The device includes multiple protection features such as overcurrent, thermal shutdown, and under-voltage lockout (UVLO), enhancing the safety and reliability of the motor control system.
• Control Interface: A simple PHASE/ENABLE control interface allows for easy direction and speed control of the motor, making it accessible for both beginners and advanced users.
• Package: The DRV777PWR comes in a small 8-pin TSSOP package, which is ideal for space-constrained applications.

Applications

The flexibility of the DRV777PWR motor driver makes it an excellent choice for a multitude of applications, including but not limited to:

• Battery-powered toys
• Small pumps and fans
• Portable electronic devices
• Automated locks and security devices

Design Support

Texas Instruments provides extensive design support for the DRV777PWR, including detailed datasheets, application notes, and a variety of design tools. Engineers can take advantage of TI's E2E™ support forums for additional assistance and community advice to streamline the design process and reduce time to market.
