Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Series DirectPath
Amplifier Type Class AB
Output Type 2-Channel (Stereo) with Stereo Headphones
Operating Supply Voltage 5V
Board Type Fully Populated
Utilized IC / Part DRV604
Supplied Contents Board(s)
Win Source Part Number 772841-DRV604PWPEVM
Popularity Medium
Supply and Demand Status Balance
Family Name DRV604
Introduction Date January 31, 2010
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian DRV604PWPEVM CAD Model

Description

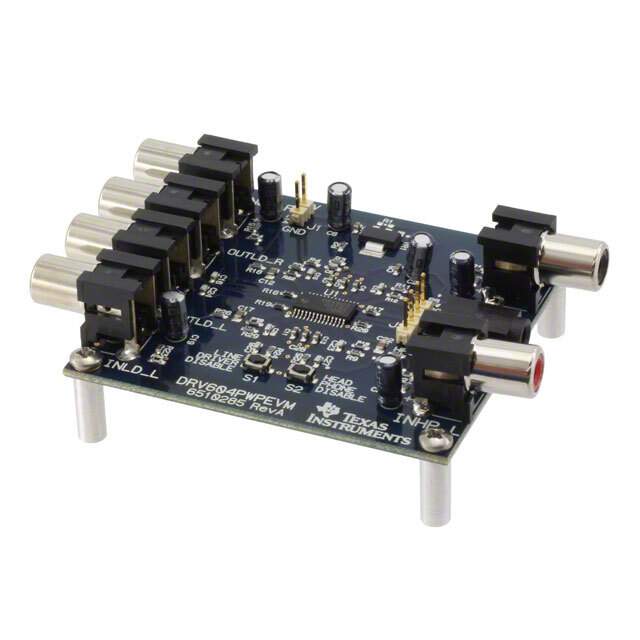

DRV604PWPEVM Evaluation Module from Texas Instruments

The DRV604PWPEVM from Texas Instruments is a comprehensive evaluation module (EVM) designed for audio enthusiasts, system designers, and engineers looking to explore the capabilities of the DRV604 direct-path, stereo audio line driver. This high-performance component is ideal for a wide range of applications, including home theater systems, multimedia speakers, and professional audio equipment.

The EVM is equipped with the DRV604 integrated circuit (IC), which is known for its exceptional audio quality and flexibility. The IC features a 2VRMS direct-path output, which eliminates the need for an output DC-blocking capacitor. This results in reduced component count, saving space and cost on the end application's printed circuit board (PCB). The DRV604 also boasts an integrated charge pump that generates a negative supply voltage, allowing for a ground-centered output without the need for a bulky and expensive DC-DC converter.

Key features of the DRV604PWPEVM include:

  • Plug-and-play functionality for quick and easy evaluation.
  • Onboard RCA connectors to facilitate connection to audio sources and output devices.
  • Flexible power supply options, with support for single-supply operation ranging from 4.5V to 5.5V.
  • Integrated pop and click suppression circuitry, ensuring smooth power cycling without audible transients.
  • High-fidelity, low 0.008% THD+N (Total Harmonic Distortion + Noise) for a pristine audio experience.
  • Robust thermal and short-circuit protection for enhanced reliability and longevity of the module.

The DRV604PWPEVM also comes with comprehensive documentation, including a detailed user guide that walks you through the setup and operation of the EVM. This ensures that even those new to audio hardware design can quickly get up to speed with the functionality and performance characteristics of the DRV604 IC.

Whether you're developing a new audio product or simply experimenting with high-quality audio line drivers, the DRV604PWPEVM from Texas Instruments provides a versatile and reliable platform for your audio applications. Its combination of high-quality audio performance, ease of use, and robust protection features make it an excellent choice for any audio system designer's toolkit.
