The DAC38RF85IAAV is a state-of-the-art, dual-channel, ultra-high-speed digital-to-analog converter (DAC) from Texas Instruments, designed to deliver exceptional performance in radio frequency (RF) and intermediate frequency (IF) applications. This powerful DAC is an ideal choice for advanced wireless communication systems, test and measurement equipment, and radar systems where high resolution and sampling rates are crucial.

With an impressive sampling rate of up to 9 GSPS (Giga Samples Per Second), the DAC38RF85IAAV is capable of direct RF synthesis up to 4.5 GHz, which allows it to support a wide range of frequencies for versatile use in multiple systems. The device features a 16-bit resolution, providing the precision needed for high-performance signal generation with low noise and high dynamic range.

The DAC38RF85IAAV integrates two DAC cores that can be configured in a variety of modes, including dual-channel, interleaved, and complex data output modes. This flexibility enables users to optimize the DAC's performance for their specific application needs. Additionally, it comes with an on-chip phase-locked loop (PLL) that simplifies the system design by reducing the number of external components required for clock generation.

The device also includes advanced digital signal processing features such as a digital quadrature modulator correction (DUC), which compensates for I/Q imbalance, phase offset, and gain mismatch. This ensures the highest quality signal synthesis and helps to reduce the overall system calibration time.

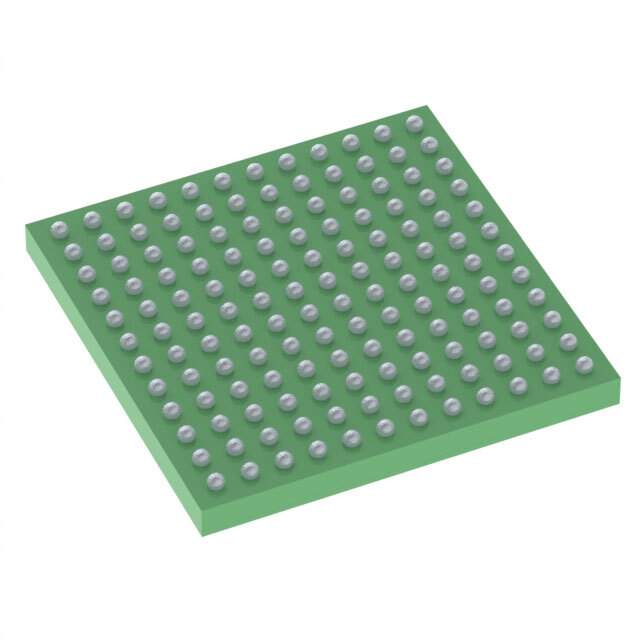

Designed with system integration in mind, the DAC38RF85IAAV boasts a JESD204B interface for high-speed data transfer, making it compatible with a wide range of FPGA and ASIC technologies. The part is available in a compact, 10x10 mm, 144-ball BGA package, which is suitable for space-constrained applications while still providing excellent thermal performance.

Overall, the DAC38RF85IAAV from Texas Instruments represents a cutting-edge solution for designers looking to push the boundaries of speed, precision, and signal quality in their RF and IF systems.
