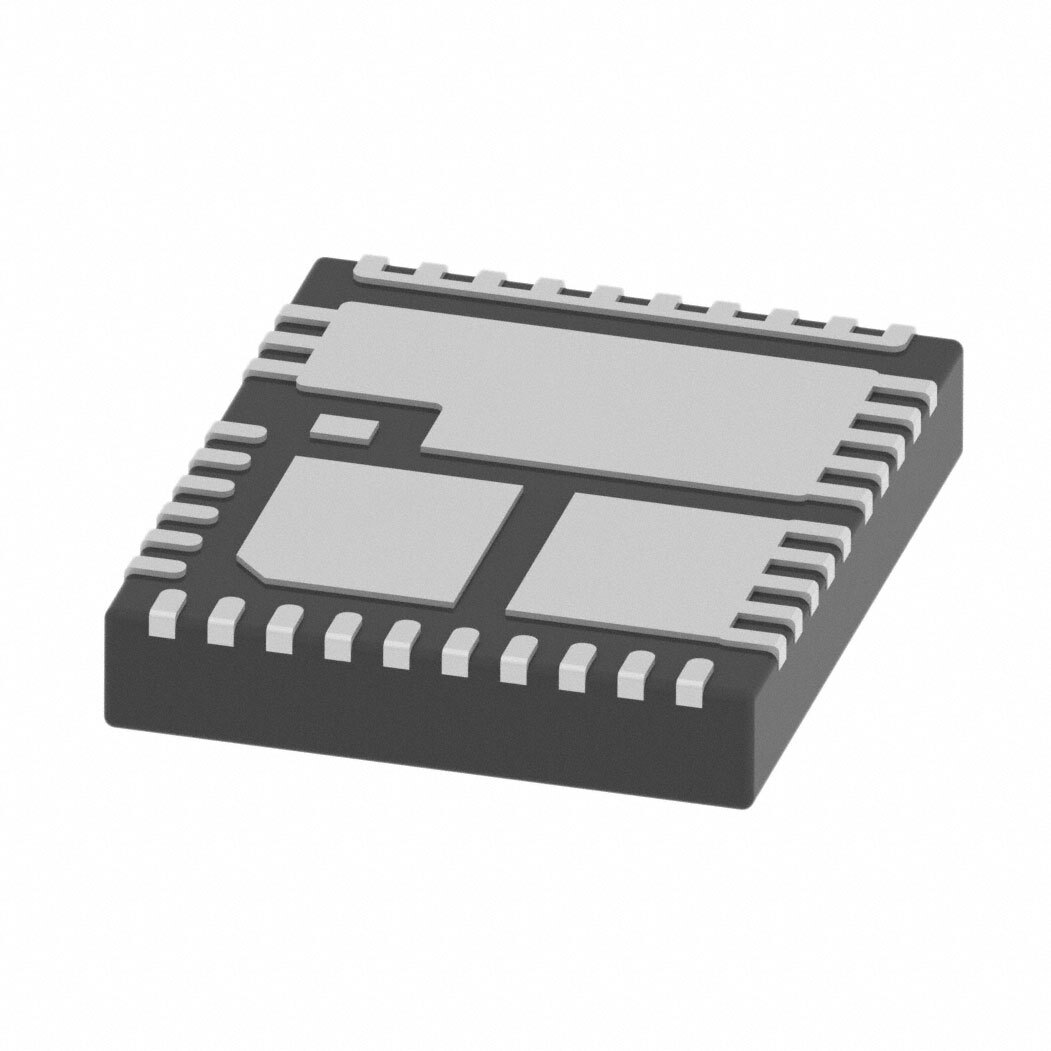

The CSD95485RWJ is a state-of-the-art power block device manufactured by Texas Instruments, designed to deliver high-efficiency, synchronous buck or boost power conversion in a compact form factor. This innovative component is part of TI's NexFET™ product line, which is renowned for its advanced power management technology and superior performance.
Key Features
- High-Density Power Solution: The CSD95485RWJ integrates two power MOSFETs into a single package, offering a highly efficient and space-saving solution for power supply design.
- Optimized for 5V Gate Drive: This power block is specifically optimized for a 5V gate drive, which allows for a simplified driver circuit and compatibility with a wide range of controllers.
- Low R<sub>DS(on): With its low on-resistance, the device ensures minimal conduction losses, improving overall efficiency and thermal performance in applications.
- SON 5mm x 6mm Plastic Package: The small outline no-lead (SON) package enables a compact footprint on the PCB, making it ideal for space-constrained applications.
- High Continuous Current Capability: The CSD95485RWJ is capable of handling high continuous current, making it suitable for demanding applications such as servers, telecom infrastructure, and high-performance computing.
Applications
- Server and Telecom Power Supplies
- High-Performance Computing and Graphics Cards
- Multi-phase Power Supplies
- Point of Load (POL) Modules
- High-Density Power Modules
Technical Specifications
Parameter
Value
V<sub>IN Range
4.5V to 15V
Max Output Current
40A
Switching Frequency
Up to 1MHz
Operating Temperature
-40°C to 125°C
Overall, the Texas Instruments CSD95485RWJ NexFET™ Power Block is a robust and efficient solution for modern electronic power supply requirements, combining performance with a compact design to meet the needs of a wide array of high-power-density applications.
