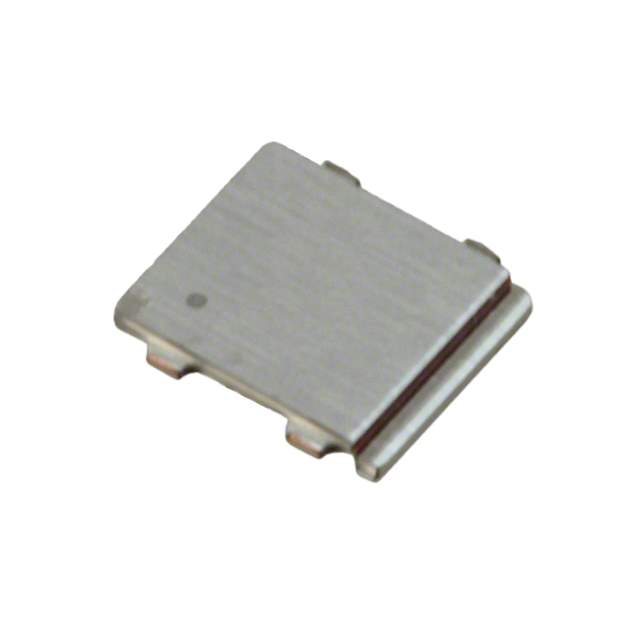

CSD87588N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 1
Category Discrete Semiconductor Products
Family FETs - Arrays
Series NexFET
Packaging Reel
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 25A
Rds On (Max) @ Id Vgs 9.6 mOhm @ 15A 10V
Vgs(th) (Max) @ Id 1.9V @ 250µA
Gate Charge (Qg) @ Vgs 4.1nC @ 4.5V
Input Capacitance (Ciss) @ Vds 736pF @ 15V
Power - Max 6W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style SMD/SMT
Package 5-XFLGA
Manufacturer Device Package 5-PTAB (3x2.5)
Catalog N-Channel Logic Level Gate FETs
Win Source Part Number 080038-CSD87588N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CSD87588N
Introduction Date March 24, 2013
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CSD87588N CAD Model

Description

Product Description

The CSD87588N is a next-generation power stage solution that offers improved performance for DC-DC buck converter designs. With minimal footprint and robust thermal properties, it is ideal for demanding environments and power-hungry applications.

Features and Benefits

  • Compact, high-efficiency power stage
  • Optimized topology for reduced overall system cost
  • Highly reliable design for extended operational lifetime
  • Exceptional thermal dissipation capability

Applications

  • High-efficiency computing systems
  • Telecom and networking equipment
  • Wearable and IoT devices
  • Portable medical equipment
