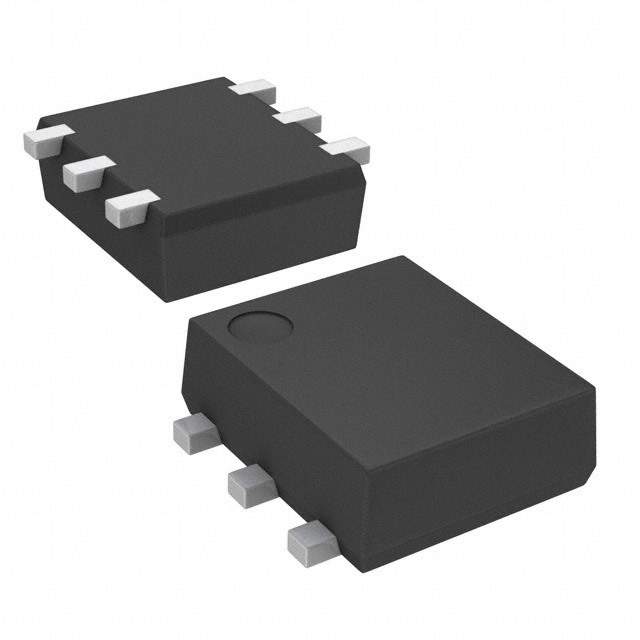

MCH6660-TL-H

Part No MCH6660-TL-H
Manufacturer ON Semiconductor
Catalog FETs - Arrays
Description General-Purpose Switching Device Applications | MOSFET N/P-CH 20V 2A/1.5A MCPH6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tape and Reel
Status Obsolete
Transistor Polarity N and P-Channel
FET Feature Logic Level Gate
Vds - Drain-Source Breakdown Voltage 20V
Id - Continuous Drain Current 2A, 1.5A
Rds On (Maximum) at Id, Vgs 136mOhm at 1A, 4.5V
Gate Charge (Qg) (Maximum) at Vgs 1.8nC at 4.5V
Input Capacitance (Ciss) (Maximum) at Vds 128pF at 10V
Maximum Power 800mW
Temperature Range - Operating 150°C
Mounting Style SMD
Manufacturer Package 6-SMD, Flat Leads
Supplier Device Package 6-MCPH
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1220726-MCH6660-TL-H
Manufacturer Homepage www.ssdc-jp.com/eng/
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MCH6660-TL-H CAD Model

Description

The MCH6660-TL-H is a high-performance, P-Channel MOSFET brought to you by ON Semiconductor, a leading supplier in the semiconductor industry. This MOSFET is designed to meet the demanding requirements of power management applications. The device features a compact and efficient design, making it ideal for space-constrained applications.

Key Features

  • Low On-Resistance: The MCH6660-TL-H offers a low on-resistance of typically 44 mΩ, which helps in reducing power loss and improving efficiency in electronic circuits.
  • High-Speed Switching: Designed for fast switching applications, this MOSFET is capable of operating at high frequencies, which is essential for power supply and conversion systems.
  • P-Channel Device: As a P-Channel MOSFET, it is commonly used for load switching and is easier to drive without the need for a negative gate drive voltage.
  • Surface Mount Package: The device comes in a compact SOP-8 package, which is suitable for surface mount technology, allowing for a more streamlined and automated manufacturing process.
  • High Reliability: ON Semiconductor's commitment to quality ensures that the MCH6660-TL-H is a reliable component for long-term use in various electronic devices.
  • Lead-Free and RoHS Compliant: The MOSFET is designed to meet environmental standards, being lead-free and RoHS compliant, thus minimizing the ecological footprint of your products.

Applications

The MCH6660-TL-H is versatile and can be used in a wide range of applications. It is particularly well-suited for:

  • Power Management Circuits
  • DC/DC Converters
  • Battery Management Systems
  • Load Switching
  • Motor Control Applications

With its combination of performance, efficiency, and reliability, the MCH6660-TL-H from ON Semiconductor is an excellent choice for designers looking to enhance their power management solutions. It delivers the quality and performance that engineers expect from a leading semiconductor manufacturer.
