Same model may have multiple batches, images only for reference.

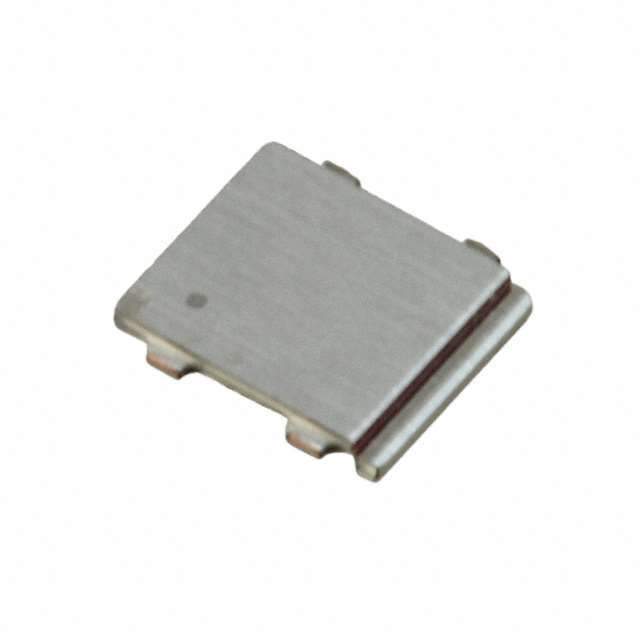

CSD87381P Real Image
Same model may have multiple batches, images only for reference.

CSD87381P

Part No CSD87381P
Manufacturer Texas Instruments
Catalog FETs - Arrays
Description MOSFET 2N-CH 30V 15A 5PTAB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 1
Category Discrete Semiconductor Products
Family FETs - Arrays
Series NexFET
Packaging Reel
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 15A
Rds On (Max) @ Id Vgs 16.3 mOhm @ 8A 8V
Vgs(th) (Max) @ Id 1.9V @ 250µA
Gate Charge (Qg) @ Vgs 5nC @ 4.5V
Input Capacitance (Ciss) @ Vds 564pF @ 15V
Power - Max 4W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style SMD/SMT
Package 5-LGA
Manufacturer Device Package 5-PTAB (3x2.5)
Catalog N-Channel Logic Level Gate FETs
Win Source Part Number 083180-CSD87381P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CSD87381PT
Introduction Date March 23, 2013
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CSD87381P CAD Model

Description

Product Description

The CSD87381P is a high-performance power block designed for synchronous buck converters. With integrated MOSFETs, it provides high efficiency and reduced component count, ideal for compact power solutions in space-constrained designs.

Features and Benefits

  • Integrated solution to minimize PCB space
  • High frequency operation to improve transient response
  • Optimized for low conduction losses
  • Robust thermal performance for high-load applications

Applications

  • Compact electronic devices
  • Portable consumer electronics
  • Embedded systems
  • Point-of-load power management
