The Texas Instruments CSD87334Q3D is a state-of-the-art, high-performance, synchronous buck NexFET™ power block that offers a highly efficient, compact solution for power supply designs. This power block is an optimal choice for applications requiring a high current solution in a limited space, such as personal computers, servers, telecom equipment, and power management systems.

Key Features

• Advanced Technology: Incorporating Texas Instruments' cutting-edge NexFET™ technology, the CSD87334Q3D provides exceptional power density and efficiency.
• High Efficiency: With its synchronous buck design, this power block achieves up to 95% efficiency, reducing power loss and improving overall system performance.

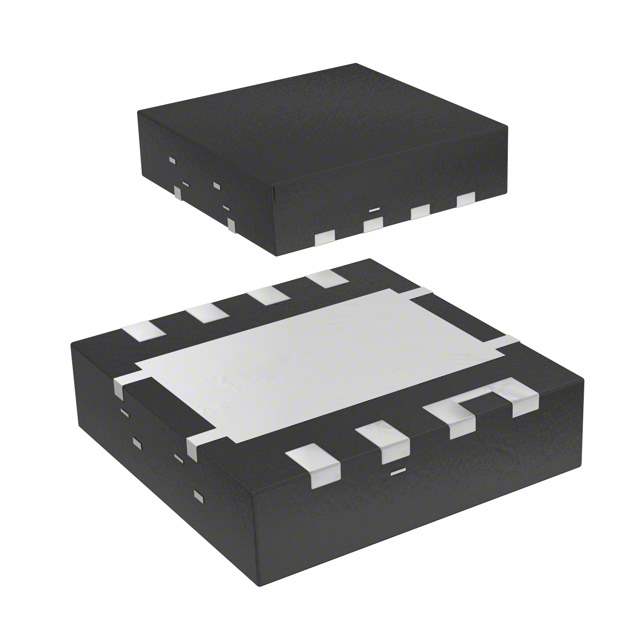

• Compact Footprint: The CSD87334Q3D comes in a small 3.3mm x 3.3mm SON package, making it ideal for space-constrained applications.
• Integrated Driver: The power block includes an integrated driver, which simplifies design and reduces external component count.
• High Continuous Current: It is capable of delivering a high continuous current, which is essential for demanding applications.

Specifications

Parameter Value Input Voltage Range 4.5V to 20V Output Current Up to 40A Operating Temperature -40°C to 125°C Package 3.3mm x 3.3mm 8-Pin SON

Applications

The CSD87334Q3D is versatile and can be used in various applications, including:

• Point of Load (POL) solutions
• Multi-phase power supplies
• Graphics cards and gaming consoles
• Networking and telecom equipment
• Server and enterprise solutions with high power density requirements

With its advanced features and specifications, the Texas Instruments CSD87334Q3D power block is an excellent choice for designers looking to enhance efficiency and performance in their power supply designs.
