Product Overview: Texas Instruments CSD87313DMST

The CSD87313DMST from Texas Instruments is a cutting-edge, dual N-Channel NexFET™ power MOSFET designed to deliver high efficiency and performance in a compact package. This advanced power solution is ideal for a wide range of applications, from computing and networking to power supplies and motor control systems.

Key Features

• Low R<sub>DS(on): The CSD87313DMST boasts an exceptionally low on-resistance, which minimizes conduction losses and enhances overall efficiency, making it an excellent choice for power-intensive applications.
• Synchronous Buck Converters: This MOSFET is optimized for synchronous buck converter applications, providing efficient power conversion for voltage regulation modules (VRMs) and point of load (POL) solutions.

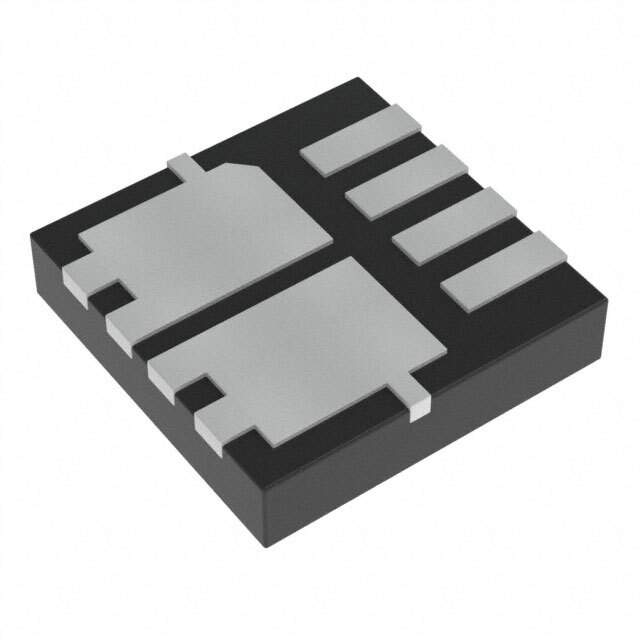

• Compact SON Package: Housed in a small outline no-lead (SON) package, the CSD87313DMST offers a space-saving footprint without compromising on power and thermal performance.
• High Continuous Drain Current: It supports a high continuous drain current, ensuring robust power delivery for demanding loads.
• Fast Switching Speed: The device features fast switching characteristics, which reduce transition losses and improve the power conversion efficiency.

Applications

The versatility of the CSD87313DMST makes it suitable for a variety of applications, including:

• Server and Telecom Power Supplies
• Desktop and Notebook Adapters
• DC/DC Converters
• Battery Management Systems
• Load Switches
• Motor Control Circuits

Technical Specifications

With a dual N-Channel configuration, the CSD87313DMST is designed to handle a maximum drain-source voltage (V<sub>DS) of 30V, and its ultra-low R<sub>DS(on) significantly reduces power dissipation. The device is also characterized by a maximum continuous drain current (I<sub>D) at 25°C, ensuring reliable operation even under high current conditions.

Conclusion

The Texas Instruments CSD87313DMST is an exceptional choice for designers looking to enhance power efficiency and performance in a compact form factor. Its high-current capability, low resistance, and fast switching speeds make it a versatile component for a wide range of power management applications.
