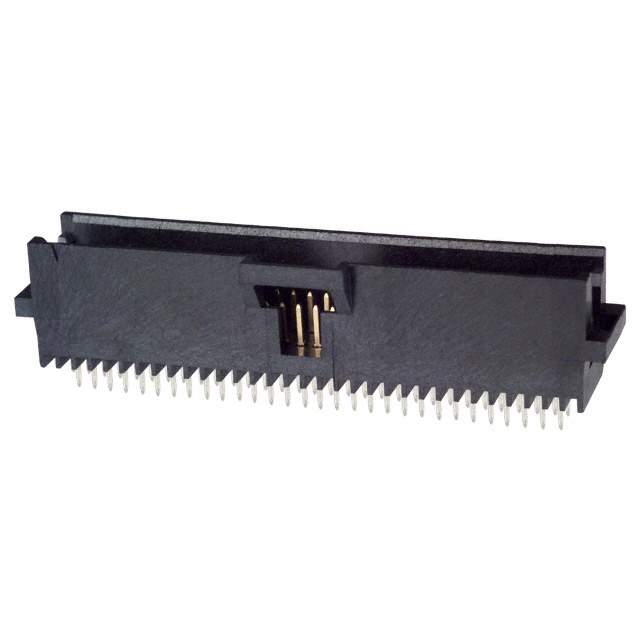

104068-6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU System 50
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 60
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.125" (3.18mm)
Contact Length - Post 0.100" (2.54mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 30VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 104068
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1040686,-104068-6-SI,A3214,2266-104068-6
Standard Package 462
Win Source Part Number 1025851-104068-6
Ultra Librarian 3D Model Ultra Librarian 104068-6 CAD Model

Description

The AMPMODU System 50 header connector is a male pin rectangular connector used in applications such as automotive, general purpose, medical, and telecommunications.

  • Positions Loaded: 60
  • Rows: two
  • Termination: soldering
  • Voltage Rating: 30VAC
  • Contact Material: copper alloy
  • Contact Finish (Mating): gold with a thickness of 30.0µin (0.76µm)
  • Contact Finish (Post): tin-lead with a thickness of 150.0µin (3.81µm)
  • Shrouded: with two walls
  • Row Spacing: 0.100" (2.54mm)
  • Pitch-Mating: 0.050" (1.27mm)
  • Contact Length (Post): 0.100" (2.54mm)
  • Contact Length (Mating): 0.125" (3.18mm)
  • Temperature Range: -65°C ~ 105°C
  • Flammability Rating: UL94 V-0
  • Packaging: tube
  • Standard Package: 462
