Overview of Texas Instruments CSD17483F4 NexFET™ Power MOSFET

The CSD17483F4 is a highly efficient, ultra-small footprint Power MOSFET developed by Texas Instruments. This component is part of the NexFET™ product line, which is renowned for its high-performance power management solutions. The CSD17483F4 is specifically designed to deliver optimal performance in a variety of applications, including load switches, DC/DC converters, and power management tasks within space-constrained environments.

Key Features

• Ultra-Low On-Resistance: The CSD17483F4 boasts a remarkably low on-resistance (R<sub>DS(on)) of just 8.7 mΩ at a gate-to-source voltage (V<sub>GS) of 4.5V. This low on-resistance ensures high efficiency and minimal power loss during operation.
• Advanced MOSFET Technology: Utilizing Texas Instruments' state-of-the-art silicon technology, the CSD17483F4 offers superior switching performance, which is essential for high-speed power switching applications.

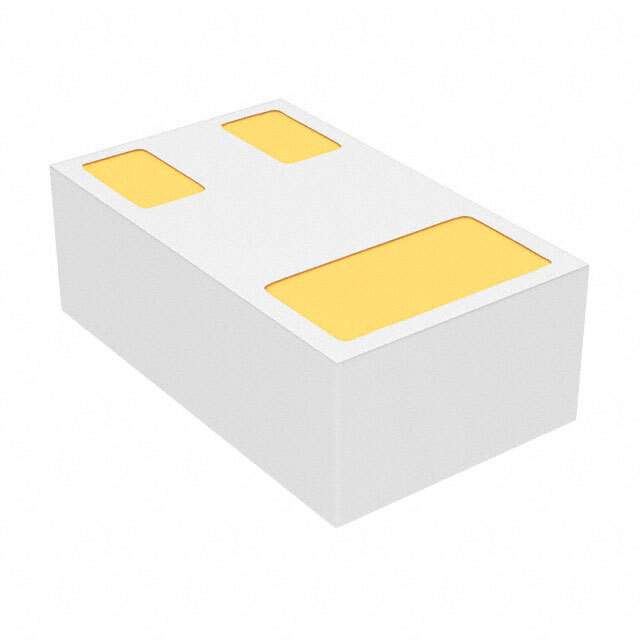

• Compact Footprint: The MOSFET comes in a tiny 0.6 mm x 1 mm, 4-pin SON package, making it an ideal choice for space-constrained applications where size is a critical factor.
• High Continuous Drain Current: It can handle a high continuous drain current (I<sub>D) of up to 6.9 A, providing robust power handling capability for a wide range of applications.

Applications

The CSD17483F4 is versatile and can be used in a variety of electronic devices and systems. Some of the typical applications include:

• Power supply modules
• Battery-powered equipment
• Power management for portable devices
• Point-of-load (POL) converters
• Load switches in server and telecom infrastructure

Reliability and Quality

As with all Texas Instruments components, the CSD17483F4 is manufactured to meet high standards of quality and reliability. Customers can expect consistent performance and durability, even under demanding conditions. The MOSFET's thermal management capabilities ensure it operates within safe temperature ranges, which extends the life of the product and the devices it powers.

Overall, the CSD17483F4 from Texas Instruments represents a blend of miniaturization, efficiency, and high performance, making it a top choice for engineers and designers looking to optimize their power management systems.
