Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Series bqTINY
Main Purpose Power Management, Battery Charger
Embedded No
Utilized IC / Part BQ24012
Primary Attributes 1 Cell- Li-Ion / Li-Pol, 4.2V @ 700mA, 5V in
Secondary Attributes Safety Timer, Precharge Conditioning, Cell Temperature Monitoring, Status Output
Supplied Contents Board(s)
Win Source Part Number 770284-BQ24012EVM
Popularity Medium
Supply and Demand Status Limited
Family Name bq24012
Introduction Date May 01, 2002
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian BQ24012EVM CAD Model

Description

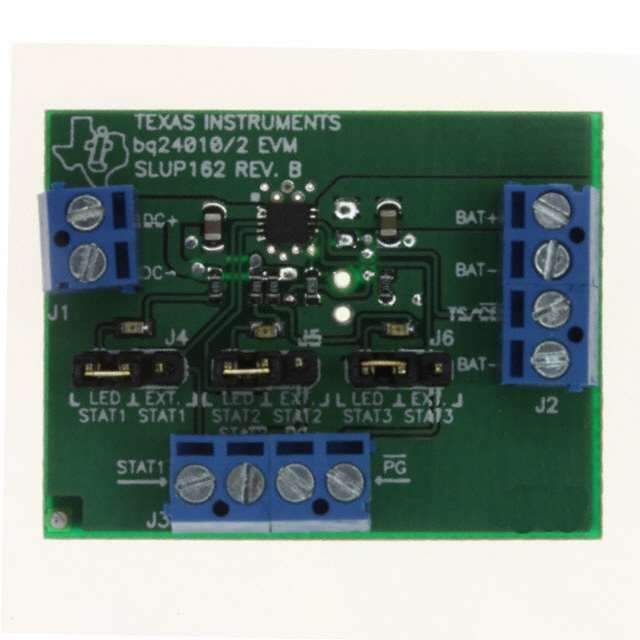

The BQ24012EVM from Texas Instruments is an evaluation module designed for users to test and evaluate the capabilities of the BQ24012 integrated circuit, a highly efficient, single-cell, lithium-ion battery charger. This product is an essential tool for engineers and designers who are looking to incorporate Texas Instruments' battery charging technology into their applications.

Key Features

  • Integrated Power FETs: The BQ24012EVM comes with integrated power FETs for charge and discharge operations, providing a compact solution for battery management.
  • Programmable Charge Parameters: Users can program key parameters such as charge current, pre-charge current, and termination current to suit a wide range of battery sizes and chemistries.
  • LED Indicators: The evaluation module includes LED indicators that provide real-time status of the charging process, including power-good, charge-in-progress, and charge-complete notifications.
  • Thermal Regulation: To ensure safety and reliability, the BQ24012EVM features thermal regulation, which reduces charge current in the event of excessive temperature rise.
  • High-Efficiency Charging: The device supports high-efficiency charging, optimizing power usage and reducing heat generation during the charge cycle.

Applications

The BQ24012EVM is ideal for a variety of applications where efficient charging of single-cell lithium-ion batteries is required. These include:

  • Portable consumer electronics
  • Handheld devices
  • Wireless headsets and speakers
  • Wearable technology
  • Medical devices

Design Support

Texas Instruments provides comprehensive design support for the BQ24012EVM, including technical documentation, reference designs, and software tools. This support enables designers to rapidly integrate the charging solution into their prototypes and accelerate the development process.

Ordering Information

The BQ24012EVM can be ordered directly from Texas Instruments or through authorized distributors. For detailed product specifications, pricing, and ordering information, please visit the Texas Instruments website or contact your local sales office.
