BFC233660223 Vishay

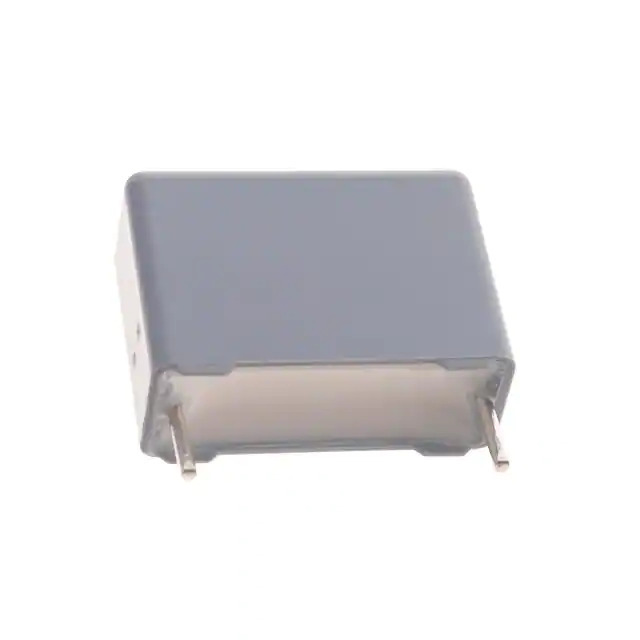

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP336 6
Package Bulk
Product Status Active
Capacitance 0.022 µF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.689" L x 0.276" W (17.50mm x 7.00mm)
Height - Seated (Max) 0.532" (13.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings Y2
Features -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1360430-BFC233660223
Ultra Librarian 3D Model Ultra Librarian BFC233660223 CAD Model

Description

The MKP336 6 series capacitor is a film capacitor manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Application: EMI and RFI suppression
  • Capacitance: 0.022 μF
  • Voltage Rating: 300V AC
  • Package: Radial
  • Mounting Type: Through-Hole
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C
  • Size: 0.689" L x 0.276" W (17.50mm x 7.00mm)
  • Seated Height: 0.532" (13.50mm)
  • Product Status: Active
