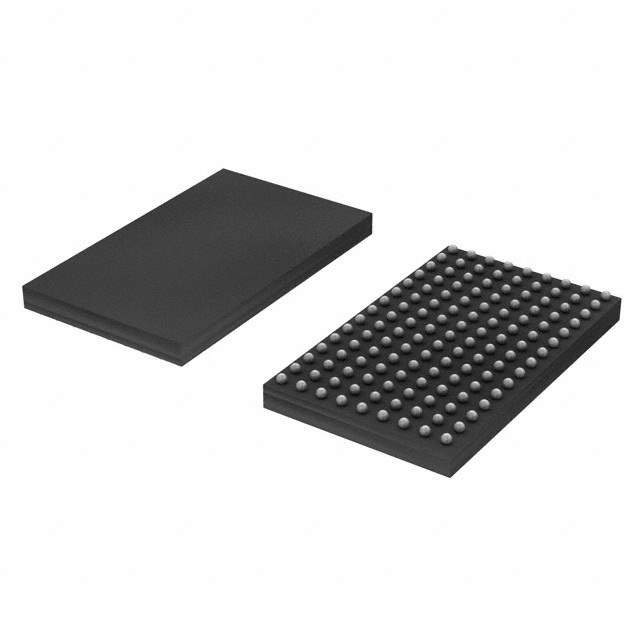

The AFE5803ZCF is a highly integrated, low-power analog front-end (AFE) solution specifically designed for medical ultrasound imaging applications by Texas Instruments. This advanced AFE combines eight channels of voltage-controlled amplifier (VCA), low-noise preamplifier (LNA), and a continuous wave Doppler (CWD) processor, making it an ideal choice for portable and high-end ultrasound systems.

Key Features

• Eight Integrated Channels: The AFE5803ZCF features eight complete receiver channels, each with a low-noise amplifier, variable gain amplifier, anti-aliasing filter, and a 12-bit analog-to-digital converter (ADC). This integration helps to reduce system size and power consumption.
• High Performance: With a noise figure as low as 2.6 dB and an input-referred noise of 0.75 nV/√Hz at a gain of 21.3 dB, the AFE5803ZCF provides excellent signal quality for clear and accurate imaging.
• Low Power Consumption: The device operates on a 1.8V supply for the digital circuitry and 3.3V for the analog circuitry, contributing to its low power consumption, which is crucial for battery-powered portable ultrasound devices.
• Flexible Gain Settings: The AFE5803ZCF offers programmable gain settings for each channel, allowing for optimal adaptation to different transducer types and imaging modes.
• Integrated CWD Processor: The inclusion of a continuous wave Doppler processor enables high-quality Doppler ultrasound imaging, which is essential for assessing blood flow and heart conditions.

Applications

The AFE5803ZCF is primarily used in medical ultrasound systems, including both portable and cart-based machines. Its versatility and high performance also make it suitable for a variety of other applications requiring multi-channel data acquisition with high dynamic range and precision.

Technical Specifications

For more detailed information and datasheets, please visit the Texas Instruments official website.
