Same model may have multiple batches, images only for reference.

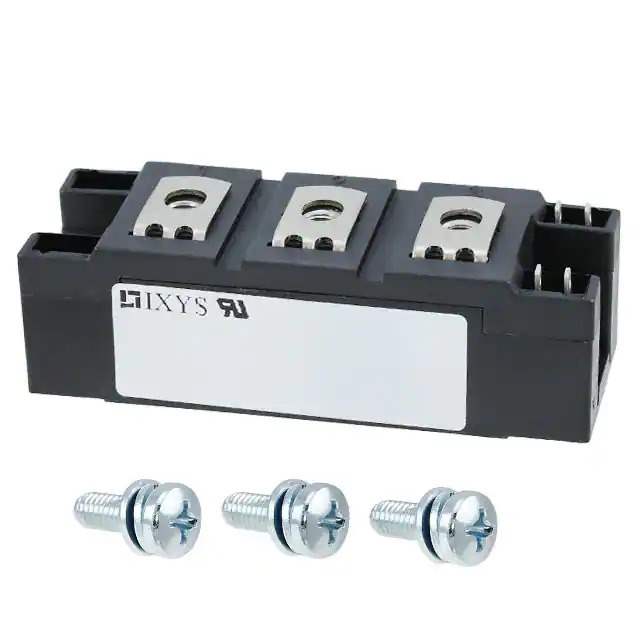

MCD162-08IO1 Real Image
Same model may have multiple batches, images only for reference.

MCD162-08IO1

Part No MCD162-08IO1
Manufacturer IXYS
Catalog TVS - Thyristors
Description MOD THYRISTOR/DIODE 800V Y4-M6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Box
Product Status Active
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 800 V
Current - On State (It (AV)) (Max) 190 A
Current - On State (It (RMS)) (Max) 300 A
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 6000A, 6400A
Current - Hold (Ih) (Max) 200 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Y4-M6
Base Product Number MCD162
Standard Package 6 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 846997-MCD162-08IO1
Ultra Librarian 3D Model Ultra Librarian MCD162-08IO1 CAD Model

Description

The MCD162-08IO1 is a module designed for thyristor applications.

  • Configuration: 1 SCR and 1 diode connected in series
  • Voltage Rating: 800V
  • Maximum Gate Trigger Voltage: 2.5V
  • Maximum On-State Current: 190A
  • Maximum Non-Repetitive Surge Current: 6000A @ 50Hz
  • Mounting: Chassis Mount
  • Package: Y4-M6
  • Temperature Range: -40°C to 125°C
  • Product Status: Active
  • Manufacturer: IXYS
  • Standard Package: 6 pieces
