Texas Instruments ADS58J89IRGCT Product Overview

The ADS58J89IRGCT is a state-of-the-art integrated circuit from Texas Instruments, designed to deliver exceptional performance in demanding applications. This high-speed, dual-channel analog-to-digital converter (ADC) is part of the ADS58J89 family, well-suited for use in wireless communication systems, test and measurement equipment, and radar systems.

Key Features

• High-Speed Performance: With a sampling rate of up to 200 MSPS (Mega Samples Per Second), this ADC provides the speed needed for high-bandwidth applications.
• Dual-Channel Operation: The device features two ADC cores, allowing for simultaneous sampling of two analog signals, which is essential for complex signal processing tasks.
• Resolution: It boasts a 14-bit resolution, ensuring precise digital representation of the input signal for accurate data acquisition and analysis.
• Digital Down Converter (DDC): Integrated DDCs with decimation filters enable digital data processing, reducing system complexity and power consumption.
• JESD204B Interface: The high-speed serial interface ensures efficient data transfer to digital processors, supporting the latest industry standards for connectivity.

Applications

The ADS58J89IRGCT is designed for advanced applications that require high-speed data conversion and processing. Its robust feature set makes it an ideal choice for:

• Wireless infrastructure (e.g., LTE, 5G)
• Microwave backhaul
• Phased-array radar systems
• Test and measurement equipment
• Satellite communications

Reliability and Quality

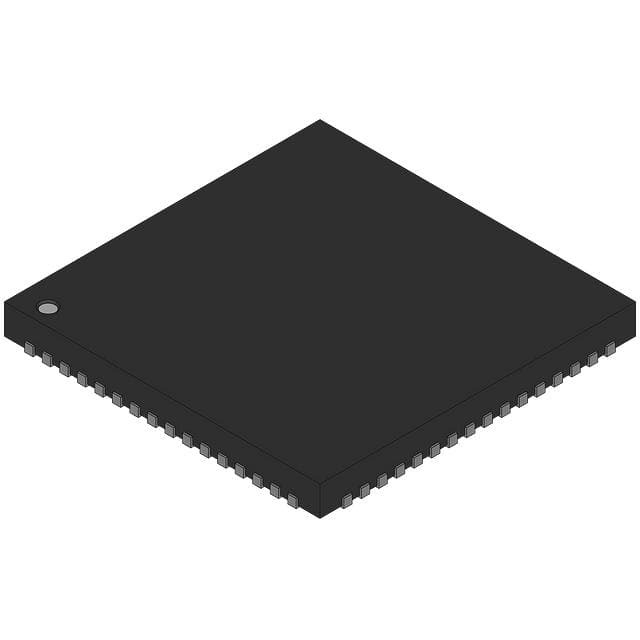

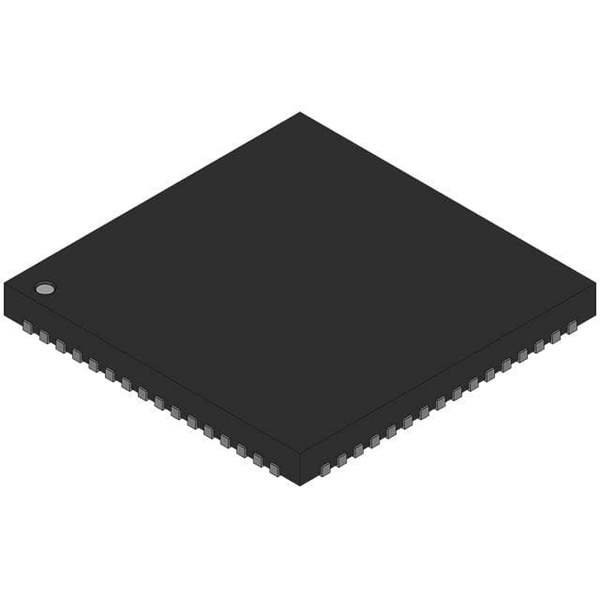

As with all Texas Instruments products, the ADS58J89IRGCT is manufactured to the highest quality standards, ensuring reliability and performance in the field. The device is available in a compact VQFN (Very Thin Quad Flat Non-leaded) package, which is designed for space-constrained applications while providing excellent thermal performance.

For designers and engineers looking for a high-performance ADC solution, the Texas Instruments ADS58J89IRGCT represents a blend of speed, precision, and functionality, making it a top choice for cutting-edge electronic systems.
