Product Overview: ADS131M06IRSNT

The ADS131M06IRSNT is a cutting-edge precision analog-to-digital converter (ADC) from Texas Instruments, designed to cater to a wide array of applications that require high-accuracy data acquisition. This particular model stands out with its 24-bit resolution and six differential input channels, making it an ideal choice for advanced industrial, medical, and communication systems.

Key Features

• Resolution: The ADS131M06IRSNT boasts a high-resolution 24-bit Sigma-Delta ADC, ensuring precise measurements and data integrity for critical applications.
• Channels: With six differential input channels, it allows for multiple signal acquisitions simultaneously, which is essential for complex systems that monitor various parameters.
• Data Rate: It offers a programmable data rate ranging from 250 SPS (samples per second) to 128 kSPS, providing flexibility for different sampling requirements.
• Interface: The device features a SPI-compatible serial interface, facilitating easy integration with microcontrollers and digital systems.
• Integrated Features: It includes an internal oscillator, a temperature sensor, and a voltage reference to minimize external component requirements and simplify system design.
• Power Efficiency: The ADC operates with a low current consumption, making it suitable for power-sensitive applications.

Applications

The ADS131M06IRSNT is versatile and can be deployed in various high-performance applications such as:

• Industrial automation and control systems
• Power monitoring and management
• Medical instrumentation like ECG and EEG monitors
• Test and measurement equipment

Package and Quality

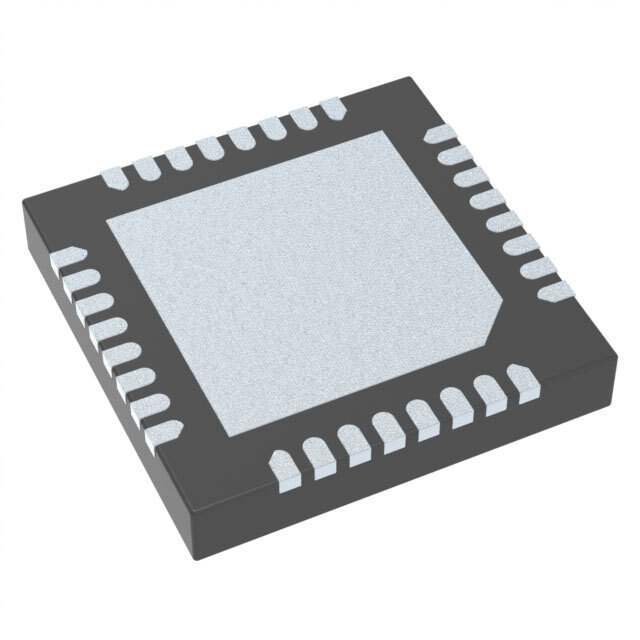

This ADC comes in a compact WQFN-32 package, making it suitable for space-constrained applications. It is also specified for operation over the industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments. Texas Instruments is known for its commitment to quality, and the ADS131M06IRSNT is no exception, meeting stringent industry standards for performance and durability.
