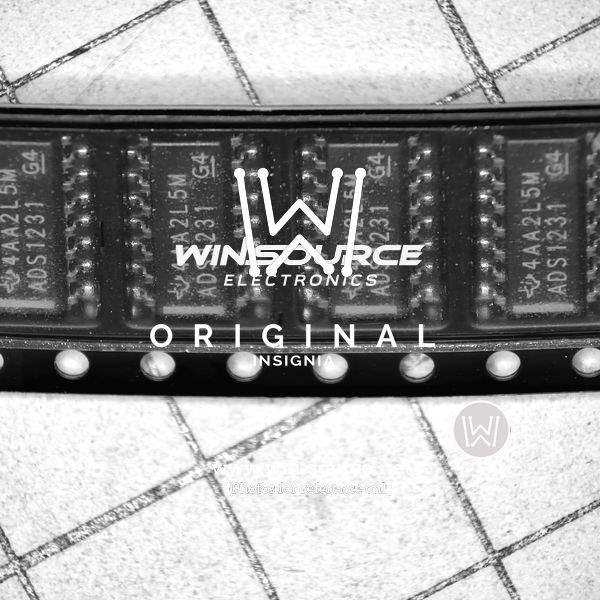

Same model may have multiple batches, images only for reference.
ADS1231IDR Texas Instruments ADS1231IDR Real Image ADS1231IDR real image1533 ADS1231IDR real image1534 ADS1231IDR Real Image1 ADS1231IDR Real Image2 ADS1231IDR Real Image3 ADS1231IDR Real Image4 ADS1231IDR Real Image5 ADS1231IDR Real Image6 ADS1231IDR Real Image7 ADS1231IDR Real Image8
ADS1231IDR Texas Instruments ADS1231IDR Real Image ADS1231IDR real image1533 ADS1231IDR real image1534 ADS1231IDR Real Image1 ADS1231IDR Real Image2 ADS1231IDR Real Image3 ADS1231IDR Real Image4 ADS1231IDR Real Image5 ADS1231IDR Real Image6 ADS1231IDR Real Image7 ADS1231IDR Real Image8
Same model may have multiple batches, images only for reference.

ADS1231IDR

Part No ADS1231IDR
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 24BIT SRL 10/80SPS 16SOIC
Datasheet
ADS1231IDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 24
Sampling Rate 80
Number of Inputs 1
Input Type Differential
Data Interface SPI
Configuration ADC
Number of A/D Converters 1
Reference Type External
Analog Supply Voltage 3 V to 5.3 V
Digital Supply Voltage 3 V to 5.3 V
Temperature Range - Operating -40°C to 85°C
Case / Package 16-SOIC
Win Source Part Number 009259-ADS1231IDR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ADS1231
Introduction Date December 01, 2010
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ADS1231IDR CAD Model

Description

ADS1231IDR

The ADS1231IDR is a 24-bit precision analog-to-digital converter (ADC) designed to deliver high-resolution performance in various applications. Manufactured using advanced technologies, this ADC provides an exceptional balance of speed, accuracy, and power efficiency.

  • High-resolution Measurement: Delivers up to 24-bit resolution for precise data acquisition.
  • Low Power Consumption: Optimized for energy efficiency, making it ideal for battery-powered applications.
  • Temperature Stability: Built-in features to ensure consistent performance across a wide temperature range.

Applications/Projects:

  • Weigh scales
  • Temperature measurement systems
  • Pressure sensors
  • Industrial process controls
  • Medical instrumentation
