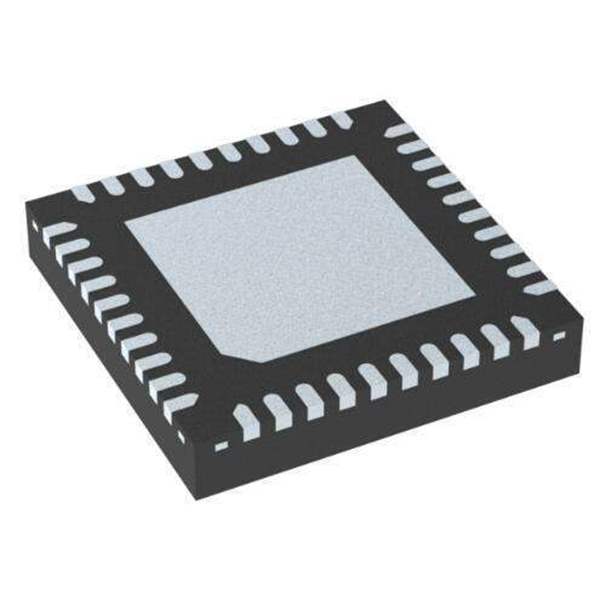

ADC3562IRSBRTexas Instruments
Same model may have multiple batches, images only for reference.

ADC3562IRSBR

Part No ADC3562IRSBR
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description SINGLE-CHANNEL, 16-BIT, 25-MSPS,
Datasheet
ADC3562IRSBR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Texas Instruments
Category Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Packaging  Tape & Reel (TR)
Part Status Active
Sampling Rate (Per Second) 25M
Input Type Single Ended
Data Interface LVDS - Serial, SPI
Configuration MUX-ADC
Reference Type External, Internal
Voltage - Supply, Analog 1.75V ~ 1.85V
Voltage - Supply, Digital 1.75V ~ 1.85V
Operating Temperature -40°C ~ 105°C
Package / Case 40-WFQFN Exposed Pad
Supplier Device Package 40-WQFN (5x5)
Mounting Type Surface Mount
Win Source Part Number WS1304124-ADC3562IRSBR
Ultra Librarian 3D Model Ultra Librarian ADC3562IRSBR CAD Model

Description

16 Bit Analog to Digital Converter 1 Input 1 40-WQFN (5x5)
