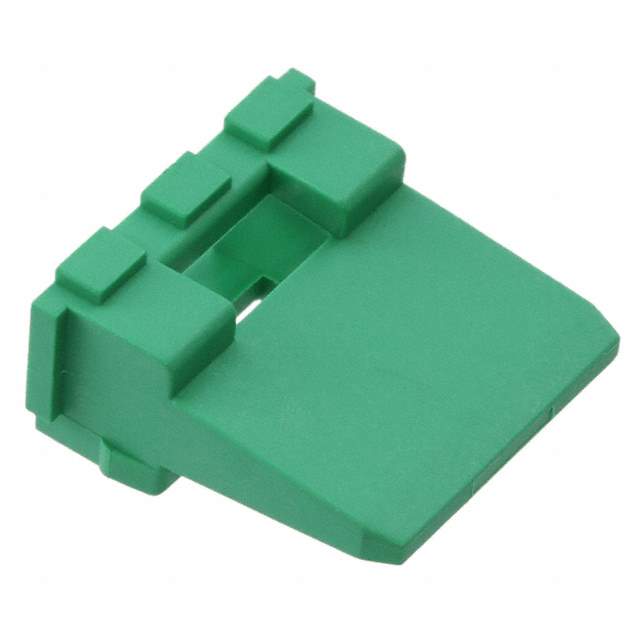

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Accessories
Manufacturer TE Connectivity Deutsch Connectors
Packaging Box
Accessory Type Wedgelock
Number of Positions 6
For Use With/Related Products DT Series Receptacles
Base Product Number W6
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number -W6P-SI,1734-1128
Standard Package 1
Win Source Part Number 1334118-W6P
Ultra Librarian 3D Model Ultra Librarian W6P CAD Model

Description

The W6P is a wedgelock accessory type with 6 number of positions. It is used with DT series receptacles and packaged in a box. The W6P is part of the rectangular connectors and rectangular connector accessories category. It is ECCN EAR99 compliant and suitable for various electronic applications.
