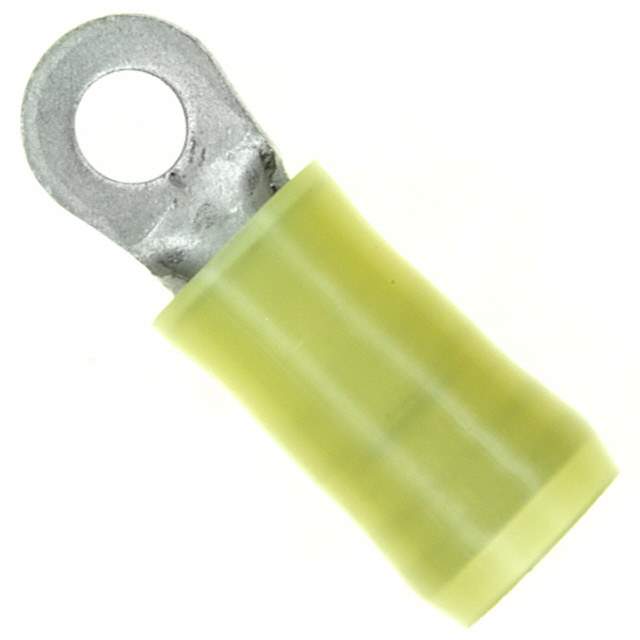

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Mfr TE Connectivity
Series PIDG
Package Bulk
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.281" (7.14mm)
Length - Overall 0.953" (24.21mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.150" ~ 0.230" (3.81mm ~ 5.84mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 3206
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 500 pcs
Win Source Part Number 1380753-320634
Ultra Librarian 3D Model Ultra Librarian 320634 CAD Model

Description

The PIDG series ring connector is a reliable and durable component for your electrical connections.

  • Wire Gauge: 10-12 AWG
  • Contact Material: Copper
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Standard Package: 500 pcs
  • Mounting Type: Free Hanging (In-Line)
  • Width: 0.281" (7.14mm)
  • Length: 0.953" (24.21mm)
  • Thickness: 0.040" (1.02mm)
  • Temperature Range: -40°C ~ 85°C
