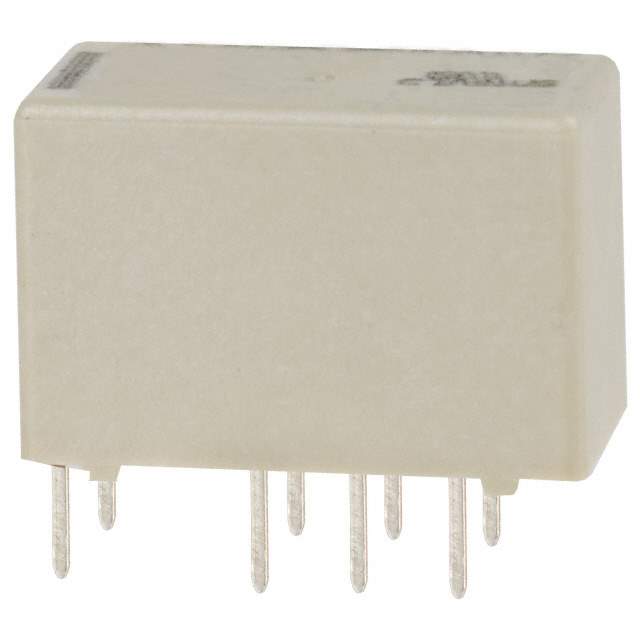

V23079-A2001-B301 Real Image
Same model may have multiple batches, images only for reference.

V23079-A2001-B301

Part No V23079-A2001-B301
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GENERAL PURPOSE DPDT 2A 5V
Datasheet
V23079-A2001-B301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 28mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 4ms
Release Time 4ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 140 mW
Coil Resistance 178 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 397115-V23079-A2001-B301
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23079-A2001-B301 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a DPDT (2 Form C) General Purpose Relay.

  • Coil Voltage: 5VDC
  • Coil Resistance: 178 Ohms
  • Switching Voltage: 250VAC, 220VDC - Max
  • Contact Rating (Current): 2A
  • Operate Time: 4ms
  • Release Time: 4ms
  • Mounting: Through Hole
  • Termination Style: PC Pin
  • Turn On Voltage (max): 3.75 VDC
  • Turn Off Voltage (min): 0.5 VDC
  • Coil Power: 140 mW
  • Operating Temperature: -40°C to 85°C
  • Packaging: Tube/Rail
  • Supply: Limited
