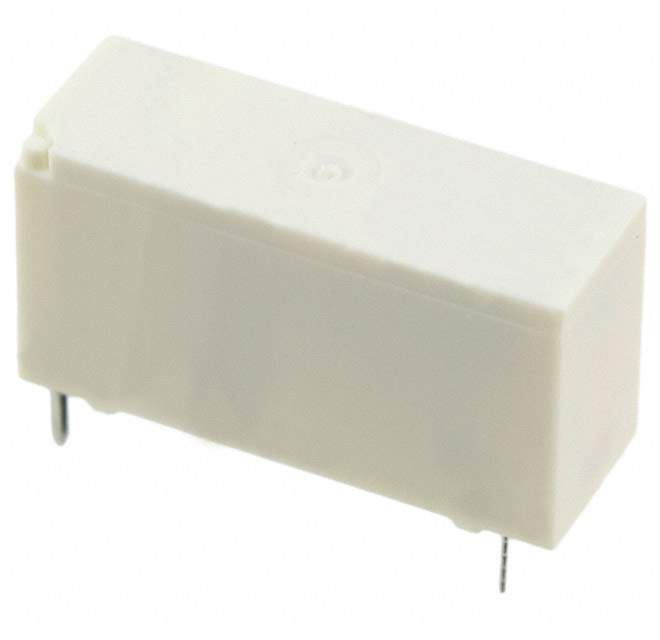

V23061B1007A301 Real Image
Same model may have multiple batches, images only for reference.

V23061B1007A301

Part No V23061B1007A301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 24V / Power Relay 24VDC 15A SPDT(30x10x15)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series MSR, SCHRACK
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 10.6mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Maximum) 16.3 VDC
Turn Off Voltage (Minimum) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 254 mW
Coil Resistance 2.27 kOhms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 798963-V23061B1007A301
Popularity Medium
Supply and Demand Status Limited
Family Name V23061
ECCN EAR99
Country of Origin Czech Republic, Egypt, Mexico, Switzerland
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian V23061B1007A301 CAD Model

Description

The V23061B1007A301 is a general relay from TE Connectivity Potter & Brumfield Relays.

  • Contact Form: SPDT
  • Coil Voltage: 24VDC
  • Insulation Class: A
  • Sealed: Fully
  • Supply and Demand Status: Limited
