Same model may have multiple batches, images only for reference.

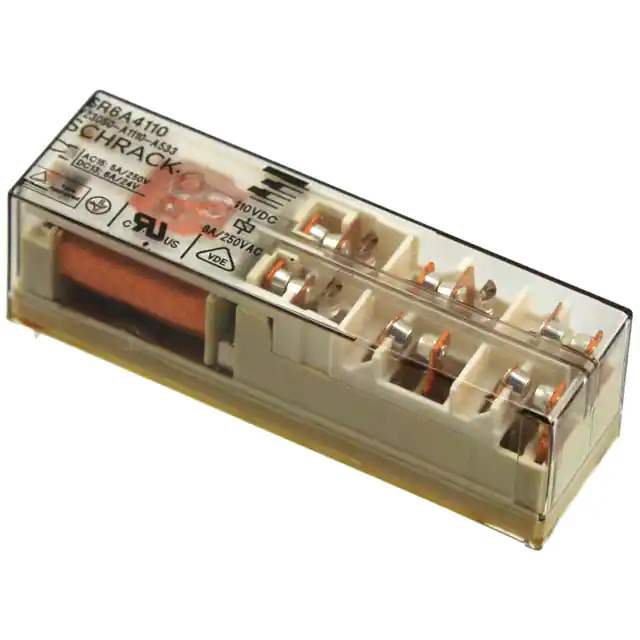

V23050A1048A542 Real Image
Same model may have multiple batches, images only for reference.

V23050A1048A542

Part No V23050A1048A542
Manufacturer TE Connectivity
Catalog Safety Relays
Description RELAY SAFETY 6PST 8A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Safety Relays
Mfr TE Connectivity
Series SR6, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form 6PST-4NO/2NC (4 Form A, 2 Form B)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Termination Style PC Pin
Must Operate Voltage 36 VDC
Must Release Voltage 4.8 VDC
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Current 25 mA
Coil Power 1.2W
Coil Resistance 1.92 kOhms
Base Product Number V23050
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 846268-V23050A1048A542
Ultra Librarian 3D Model Ultra Librarian V23050A1048A542 CAD Model

Description

The SR6 series safety relay from SCHRACK is a reliable and efficient electronic component designed for various applications.

  • Series: SR6
  • Termination Style: PC Pin
  • Contact Form: 6PST-4NO/2NC (4 Form A, 2 Form B)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 1.92 kOhms
  • Coil Current: 25 mA
  • Coil Voltage: 48VDC
  • Contact Rating (Current): 8 A
  • Switching Voltage (Max): 400VAC
  • Mounting Type: Through-Hole
  • Operating Temperature: -25°C to 70°C
  • Standard Package: 10 pieces
  • Manufacturer: SCHRACK
