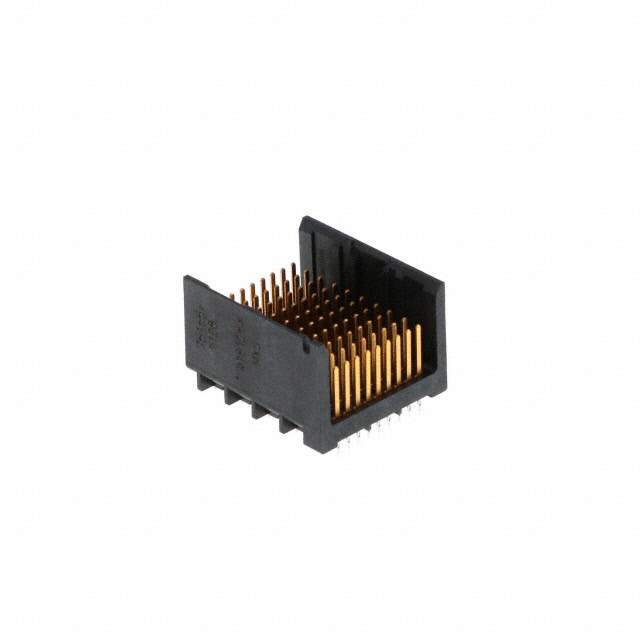

Part No 76165-1108
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description Conn Backplane HDR 60Signal/30Ground POS 1.9mm Press Fit ST Thru-Hole Box/Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Data Rate 25 Gbps
Depth 16.7 mm
Flammability Rating UL94 V-0
Gender Male
Housing Color Black
Housing Material Polymer
Impedance 100 Ω
Length 18.9 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 30 V
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 90
Number of Columns 10
Number of Pairs 3
Number of Positions 90
Number of Rows 9
Orientation Vertical
Pitch 1.3462 mm
Plating Tin
RoHS Compliant
Shielding No
Termination Press-Fit
Voltage Rating 30 V
Win Source Part Number 995577-76165-1108
Categories Backplane Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 76165-1108 CAD Model

Description

This black male press-fit connector from Molex, LLC has 90 positions, 9 rows and 10 columns.

  • Pitch: 1.3462 mm
  • Voltage Rating: 30 V
  • Data Rate: 25 Gbps
  • Impedance: 100 Ω
  • Contact Plating: gold
  • Contact Resistance: 10 mΩ
  • Housing Material: polymer
  • Length: 18.9 mm
  • Depth: 16.7 mm
  • Maximum Temperature: 85 °C
  • RoHS Compliant: Yes
