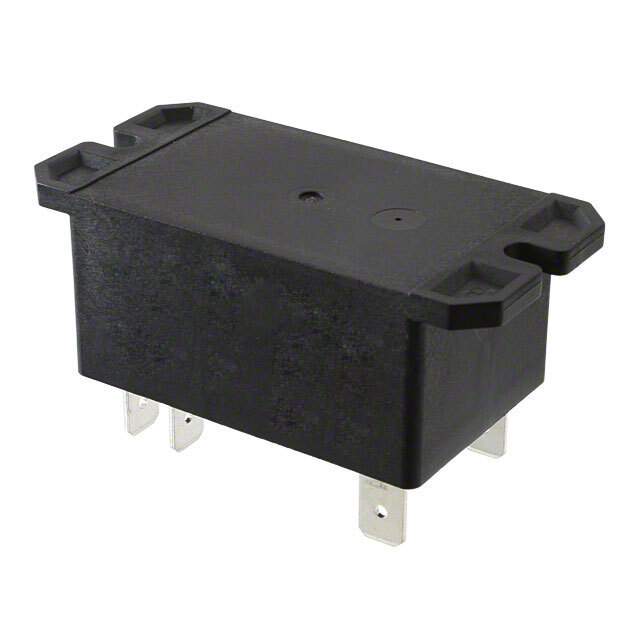

T92S7A22-240 Real Image
Same model may have multiple batches, images only for reference.

T92S7A22-240

Part No T92S7A22-240
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description 2 pole 30 A, 2 CO or 2 NO contacts | RELAY GEN PURPOSE DPST 30A 240V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Mounting Style Chassis Mount
Coil Voltage 240VAC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Nom
Coil Current 16.7mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class F
Must Operate Voltage 192 VAC
Must Release Voltage 24 VAC
Operate Time 15ms
Release Time 15ms
Temperature Range - Operating -55°C ~ 65°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 3.8 kOhms
Manufacturer Pack Quantity 30
MSL Level Not Applicable
Win Source Part Number 734889-T92S7A22-240
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T92S7A22-240 CAD Model

Description

This is a general-purpose DPST-NO (2 Form A) Relay with a Contact Rating (Current) of 30A and Switching Voltage of 277VAC - Nom. It is a Non-Latching Coil Type Relay with a Coil Voltage of 240VAC and Coil Resistance of 3.8 kOhms. This Relay is mounted on the chassis and has a Termination Style of Quick Connect - 0.250" (6.3mm). It has a Temperature Range - Operating of -55°C ~ 65°C. This Relay is perfect for use in the Relays category. It is sold in bulk and comes with a Manufacturer Pack Quantity of 30.
