Same model may have multiple batches, images only for reference.

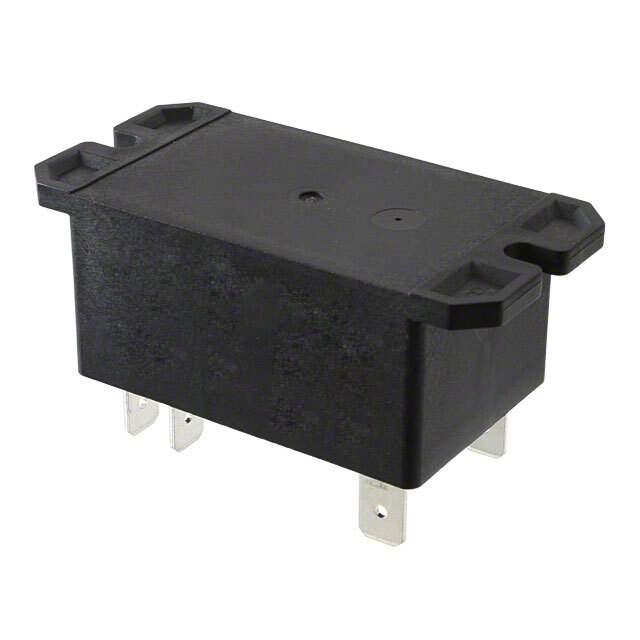

T92S7A22-208 Real Image
Same model may have multiple batches, images only for reference.

T92S7A22-208

Part No T92S7A22-208
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 30A 208V / General Purpose Relay DPST-NO (2 Form A) 208VAC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T92
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 208VAC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Nom
Coil Current 19.2 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class F
Must Operate Voltage 166.4 VAC
Must Release Voltage 20.8 VAC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 65°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Base Product Number T92S7
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0075
Other Names T92S7A22208,1393212-3
Standard Package 30
Win Source Part Number 1004342-T92S7A22-208
Ultra Librarian 3D Model Ultra Librarian T92S7A22-208 CAD Model

Description

This electronic component is a power relay from TE Connectivity Potter & Brumfield Relays, with the Win Source Part Number 1004342-T92S7A22-208.

  • Contact Form: DPST-NO (2 Form A)
  • Contact Material: silver cadmium oxide (AgCdO)
  • Coil Voltage: 208VAC
  • Contact Rating (Current): 30A
  • Switching Voltage: 277VAC - Nom
  • Temperature Range: -55°C ~ 65°C
  • Mounting Type: chassis mount
  • Supply and Demand Status: limited
