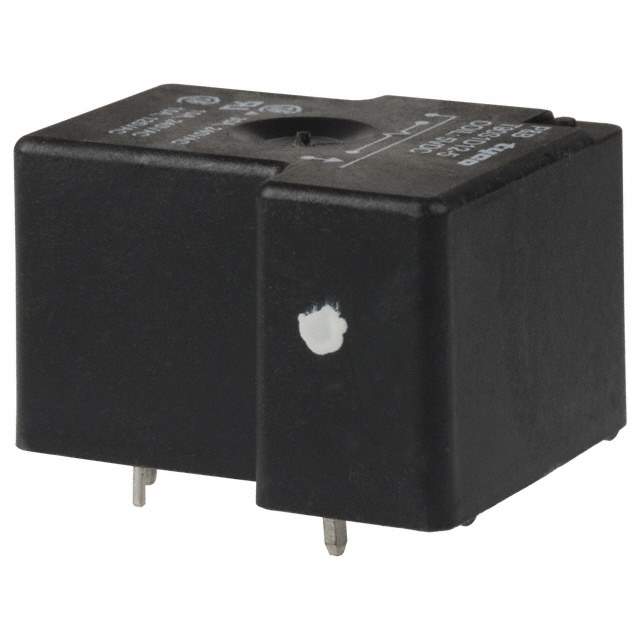

T90S5D12-12 Real Image
Same model may have multiple batches, images only for reference.

T90S5D12-12

Part No T90S5D12-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description T90 Series, 30A PCB Relay | RELAY GEN PURPOSE SPDT 20A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Obsolete
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20A
Switching Voltage 240VAC, 28VDC - Max
Coil Current 77.0mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 15ms
Release Time 15ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 155 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1263531-T90S5D12-12
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in HVAC, Industrial, Commercial
Ultra Librarian 3D Model Ultra Librarian T90S5D12-12 CAD Model

Description

The electronic component with Id 585482 is manufactured by TE Connectivity Potter & Brumfield Relays and is obsolete.

  • Win Source Part Number: 1263531-T90S5D12-12
  • Type: General Purpose Relay
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 20A
  • Switching Voltage: 240VAC and 28VDC - Max
  • Applications: HVAC, Industrial, and Commercial
  • Package: Bulk
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (Unlimited)
  • Coil Insulation: Class F
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 1.2VDC
  • Seal Rating: Sealed - fully
  • Operate Time: 15ms
  • Release Time: 15ms
