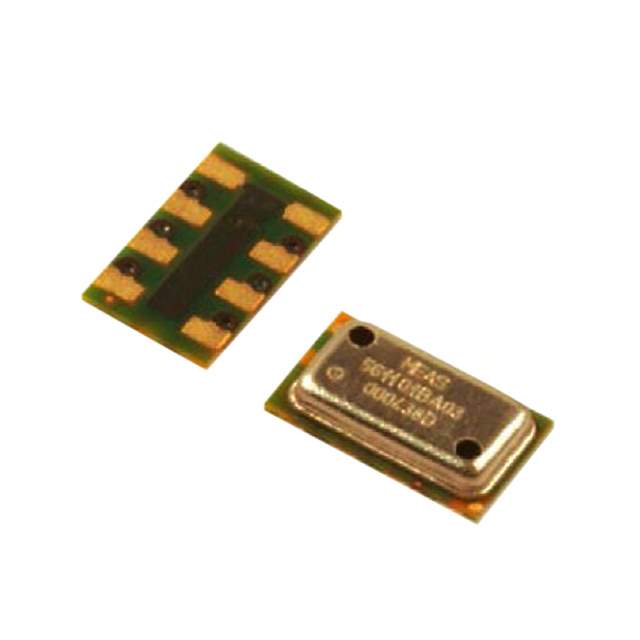

MS561101BA03-50 TE Connectivity MS561101BA03-50 Real Image MS561101BA03-50 real image
Same model may have multiple batches, images only for reference.
MS561101BA03-50 TE Connectivity MS561101BA03-50 Real Image MS561101BA03-50 real image
MS561101BA03-50 TE Connectivity MS561101BA03-50 Real Image MS561101BA03-50 real image
Same model may have multiple batches, images only for reference.

MS561101BA03-50

Part No MS561101BA03-50
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description BAROMETRIC PRESSURE SENSOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer TE Connectivity Measurement Specialties
Status Active
Pressure Type Absolute
Operating Pressure 0.15 PSI to 17.4 PSI (1 kPa to 120 kPa)
Output Type I2C, SPI
Output 24 b
Accuracy ±0.022 PSI (±0.15 kPa)
Supply Voltage - Operating 1.8 V to 3.6 V
Port Style No Port
Termination Style Solder Pad
Maximum Pressure 87.02 PSI (600 kPa)
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 107917-MS561101BA03-50
Family Name MS561101BA03-50
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MS561101BA03-50 CAD Model

Description

The TE Connectivity Measurement Specialties MS561101BA03-50 is a highly accurate absolute pressure sensor with an output of 24 b.

  • Termination Style: Solder pad
  • Output: I2C or SPI
  • Operating Pressure Range: 0.15 PSI to 17.4 PSI (1 kPa to 120 kPa)
  • Maximum Pressure: 87.02 PSI (600 kPa)
  • Accuracy: ±0.022 PSI (±0.15 kPa)
  • Temperature Range: -40°C to 85°C
  • Supply Voltage: 1.8 V to 3.6 V
  • This sensor is commonly used in sensors and transducers.
