Same model may have multiple batches, images only for reference.

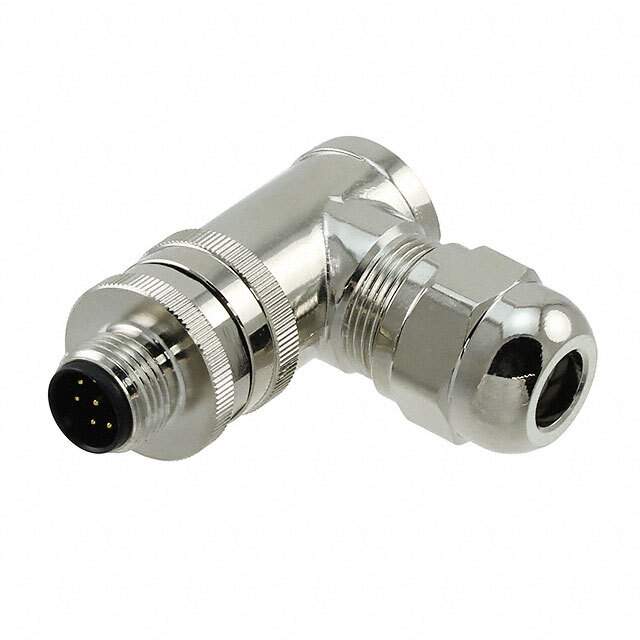

T4113012051-000 Real Image
Same model may have multiple batches, images only for reference.

T4113012051-000

Part No T4113012051-000
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN RCPT MALE 5POS GOLD SCREW / 5 Position Circular Connector Receptacle, Male Pins Screw
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 5
Shell Size - Insert M12-5
Mounting Type Free Hanging (In-Line), Right Angle
Termination Screw
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell
Shielding Shielded
Current Rating (Amps) 4A
Voltage Rating 60V
Cable Opening 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Brass, Nickel
Contact Material Zinc Alloy
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number T41130
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names -T4113012051-000-SI,A129293,T4113012051-000-ND,2266-T4113012051-000
Standard Package 1
Win Source Part Number 1038558-T4113012051-000
Ultra Librarian 3D Model Ultra Librarian T4113012051-000 CAD Model

Description

The T4113012051-000 is a 5-position M12 circular connector with a receptacle and male pins.

  • Positions: 5
  • Connector Type: M12 Circular
  • Gender: Receptacle, Male Pins
  • Voltage Rating: 60V
  • Current Rating: 4A
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Package: Bulk
  • Cable Opening: 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
  • Shell Size Insert: M12-5
  • Shielded: Yes
  • Backshell: Yes
  • Termination: Screws
  • Orientation: A
  • Mounting: Threaded
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Manufacturer: TE Connectivity AMP Connectors
