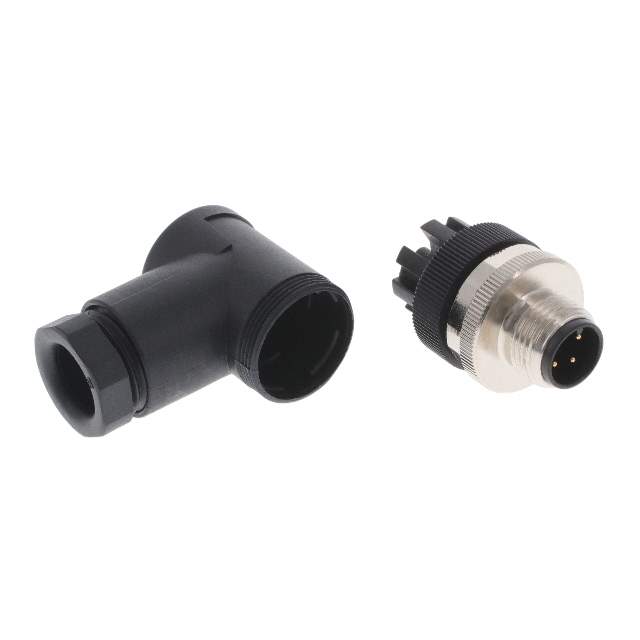

T4113002031-000

Part No T4113002031-000
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN RCPT MALE 3POS GOLD SCREW  /  3 Position Circular Connector Receptacle, Male Pins Screw
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 3
Shell Size - Insert M12-3
Mounting Type Free Hanging (In-Line), Right Angle
Termination Screw
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Black, Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell
Shielding Unshielded
Current Rating (Amps) 4A
Voltage Rating 250V
Cable Opening 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Zinc Alloy
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number T41130
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names -T4113002031-000-SI,A134558
Standard Package 1
Win Source Part Number 1034998-T4113002031-000
Ultra Librarian 3D Model Ultra Librarian T4113002031-000 CAD Model

Description

The TE Connectivity AMP Connectors M12-3 series is a circular connector that comes with a backshell feature.

  • Series: M12-3
  • Feature: Backshell
  • Voltage Rating: 250V
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Connector Type: Receptacle
  • Pins: Male
  • Termination: Screws
  • Shielded: Unshielded
  • Standard Package: 1
  • Mounting: Free Hanging (In-Line), Right Angle
  • Temperature Range: -40 degrees Celsius to 85 degrees Celsius
  • Shell Material: Brass with Nickel Finish
  • Insert Material: Polyamide (PA) and Nylon
  • Alternative Parts (Cross-Reference): Not Available
