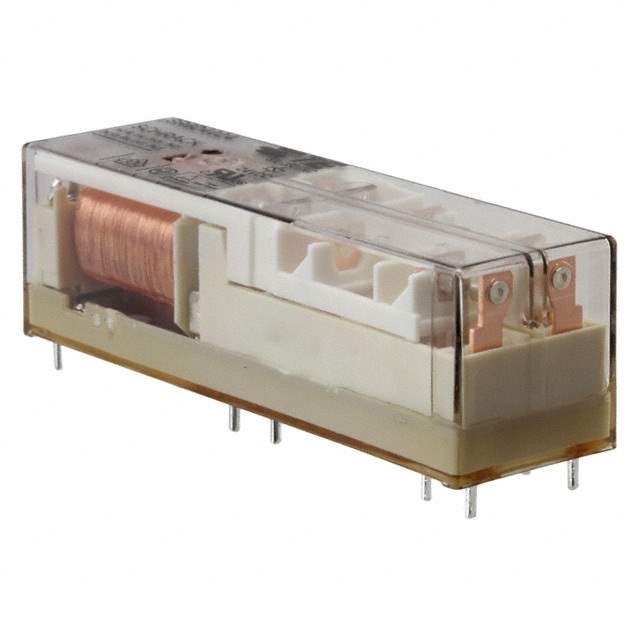

SR6D4024 Real Image
Same model may have multiple batches, images only for reference.

SR6D4024

Part No SR6D4024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY SAFETY 4PST 8A 24V
Datasheet
SR6D4024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Safety
Coil Type Non Latching
Coil Current 50mA
Coil Voltage 24VDC
Contact Form 4PST (2 Form A, 2 Form B)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Mounting Through Hole
Termination Style PC Pin
Coil Power 1.2 W
Coil Resistance 480 Ohms
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 047241-SR6D4024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SR6D4024 CAD Model

Description

TE Connectivity Potter & Brumfield Relays is a 4PST (2 Form A, 2 Form B) safety relay with a termination style of PC Pin.

  • Mounting Style: Through Hole
  • Coil Resistance: 480 Ohms
  • Coil Current: 50mA
  • Coil Voltage: 24VDC
  • Contact Rating (current): 8A
  • Switching Voltage: 400VAC - Max
  • Turn on voltage (Max): 18 VDC
  • Turn off voltage (Min): 2.4 VDC
  • Coil Power: 1.2 W
