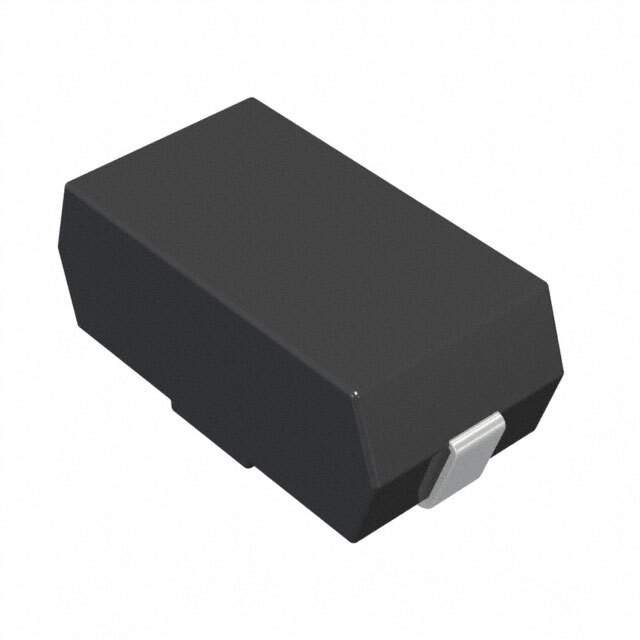

SMV1W150KJT Real Image
Same model may have multiple batches, images only for reference.

SMV1W150KJT

Part No SMV1W150KJT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description SMV 1W 150K 5% / 150 kOhms ±5% 1W Chip Resistor 2616 (6740 Metric), J-Lead Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMV
Package Tape & Reel
Resistance 150 kOhms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -65°C ~ 200°C
Package / Case 2616 (6740 Metric), J-Lead
Supplier Device Package SMD
Dimension 0.264" L x 0.157" W (6.70mm x 4.00mm)
Height - Seated (Max) 0.152" (3.85mm)
Number of Terminations 2
Base Product Number SMV1
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2176322-3,A130760TR,A130760CT,A130760DKR
Standard Package 2,000
Win Source Part Number 1094622-SMV1W150KJT
Ultra Librarian 3D Model Ultra Librarian SMV1W150KJT CAD Model

Description

This chip resistor has a resistance of 150 kOhms with a tolerance of ±5%.

  • Resistance: 150 kOhms
  • Tolerance: ±5%
  • Series: SMV series
  • Power Rating: 1W
  • Temperature Coefficient: ±200ppm/°C
  • Composition: Metal film
  • Terminations: Two
  • Package: 2616 (6740 Metric), J-Lead
  • Supplied: Tape and reel
  • Seated Height: 0.152 inches (3.85mm)
  • Features: Anti-sulfur, flame proof, high voltage, pulse withstanding, and safety
  • Supplier Device Package: SMD
  • Operating Temperature: -65°C to 200°C
  • Dimension: 0.264 inches L x 0.157 inches W (6.70mm x 4.00mm)
  • Manufacturer: TE Connectivity Passive Product
  • Alternative Part Number: SMV1W150KJT2176322-3
  • ECCN: EAR99
  • HTSUS: 8533.21.0030
  • REACH Status: REACH unaffected
