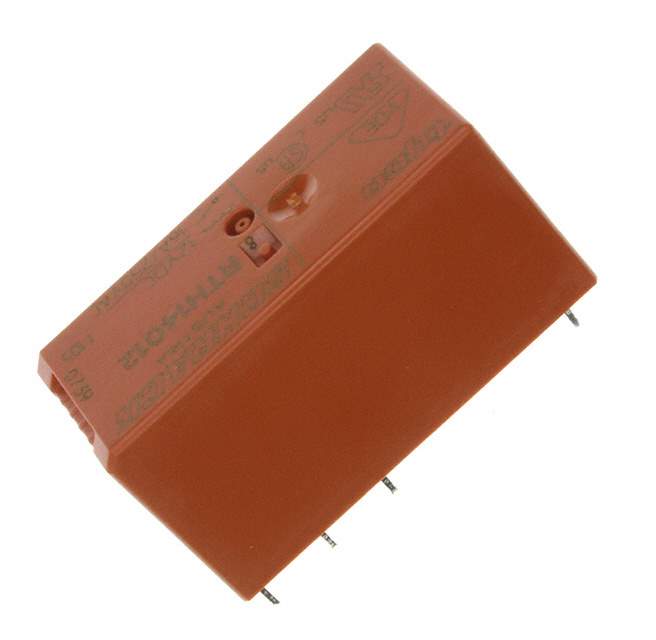

RTH34012 Real Image
Same model may have multiple batches, images only for reference.

RTH34012

Part No RTH34012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V
Datasheet
RTH34012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 8ms
Release Time 6ms
Features Insulation - Class F
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 105°C
Win Source Part Number 131358-RTH34012
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RTH34012 CAD Model

Description

The RTH34012 is a general-purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Supply and Demand Status: Limited
  • Relay Type: Single-Pole, Single-Throw (SPST)
  • Contact Rating: 16A
  • Switching Voltage: 400VAC
  • Coil Voltage: 12VDC
  • Mounting: Through-Hole
  • Coil Resistance: 360 ohms
  • Applications: Industrial control, automation, and telecommunications
