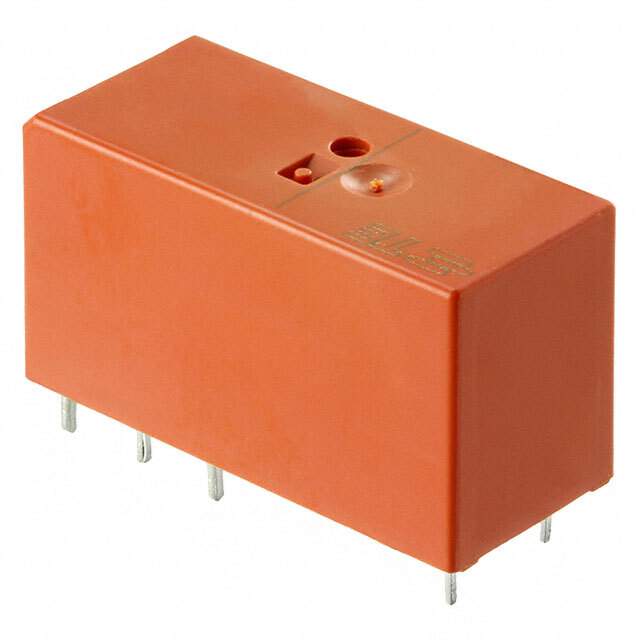

RTE24005 Real Image
Same model may have multiple batches, images only for reference.

RTE24005

Part No RTE24005
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE DPDT 8A 5V
Datasheet
RTE24005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 80.6mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 8ms
Release Time 6ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 62 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 131259-RTE24005
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RTE24005 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a DPDT (2 Form C) general purpose relay with a coil voltage of 5VDC.

  • Coil Voltage: 5VDC
  • Coil Resistance: 62 Ohms
  • Coil Current: 80.6mA
  • Contact Rating: 8A
  • Switching Voltage: 400VAC - Max
  • Insulation: Class F
  • Operate Time: 8ms
  • Release Time: 6ms
  • Mounting: Through-Hole
  • Termination Style: PC Pin
  • Coil Power: 400mW
  • Operating Temperature Range: -40°C to 85°C
  • Status: Active component with medium popularity and limited supply and demand status in the market
