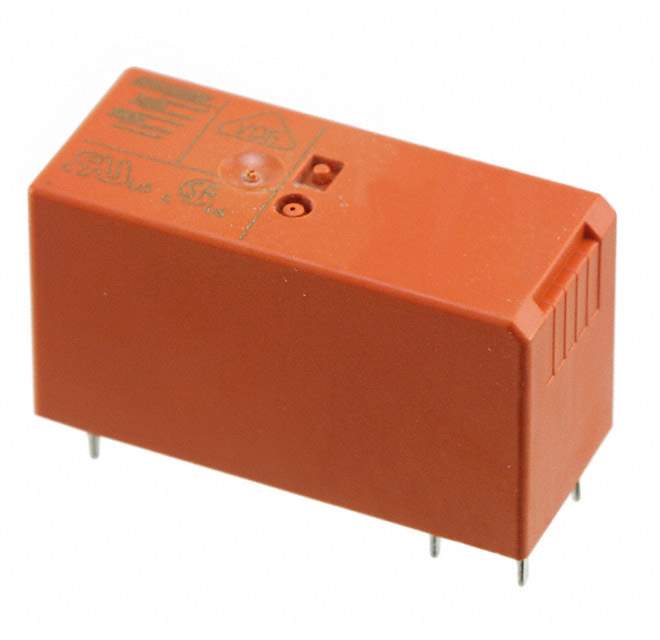

RT33L024 Real Image
Same model may have multiple batches, images only for reference.

RT33L024

Part No RT33L024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Datasheet
RT33L024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 9ms
Release Time 6ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 1.44 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 210906-RT33L024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RT33L024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RT33L024 is a general-purpose relay designed for use in relays.

  • Contact Rating (current): 16A
  • Switching Voltage: 400VAC - Max
  • Turn on Voltage (max): 16.8 VDC
  • Turn off Voltage (min): 2.4 VDC
  • Termination Style: PC Pin
  • Mounting: Through hole
  • Features: Insulation - class F and is sealed - flux protection
  • Relay Type: Non-latching
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7mA
  • Operate Time: 9ms
  • Release Time: 6ms
  • Coil Power: 400 mW
  • Status: Active
  • Popularity: Medium
  • Supply Status: Limited
  • Packaging: Tube/rail
