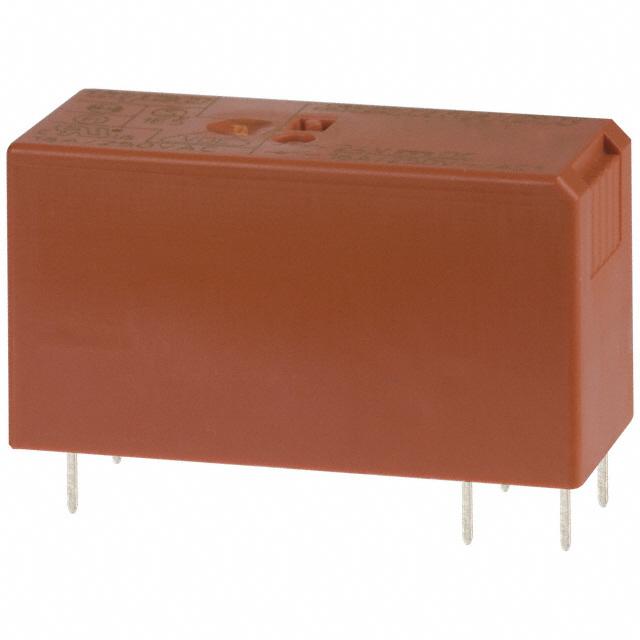

RT334024 TE Connectivity
Same model may have multiple batches, images only for reference.

RT334024

Part No RT334024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Datasheet
RT334024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 8ms
Release Time 6ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 1.44 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 145306-RT334024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RT334024 CAD Model

Description

This electronic component is a general-purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Contact Form: Single-pole, single-throw normally open
  • Maximum Switching Voltage: 400VAC
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7mA
  • Contact Rating: 16A
  • Release Time: 6ms
  • Operate Time: 8ms
  • Sealed: Insulation class F and flux protection
  • Supply Status: Limited
  • Mounting: Through hole
  • Termination Style: PC pin
