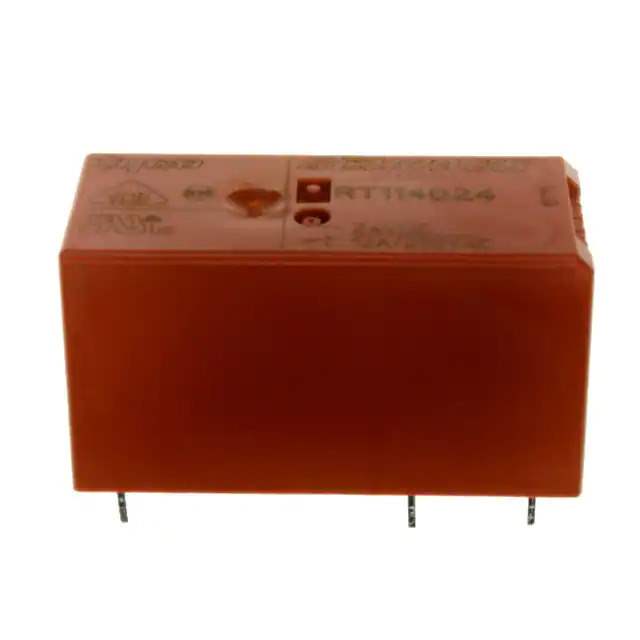

RT114024 Real Image RT114024 Real Image
Same model may have multiple batches, images only for reference.
RT114024 Real Image RT114024 Real Image
RT114024 Real Image RT114024 Real Image
Same model may have multiple batches, images only for reference.

RT114024

Part No RT114024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT1, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number RT114
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 661370-RT114024
Ultra Librarian 3D Model Ultra Librarian RT114024 CAD Model

Description

The RT1 series power relay from SCHRACK is a reliable and efficient component for your electronic projects.

  • Contact Form: SPDT (1 Form C)
  • Switching Voltage: 400VAC (maximum)
  • Coil Voltage: 24VDC
  • Contact Rating: 12A
  • Protection: sealed with flux protection
  • Temperature Range: -40°C to 85°C
  • Mounting: through-hole mounting
  • Package: tube
  • Market Status: active product
  • Manufacturer: TE Connectivity
