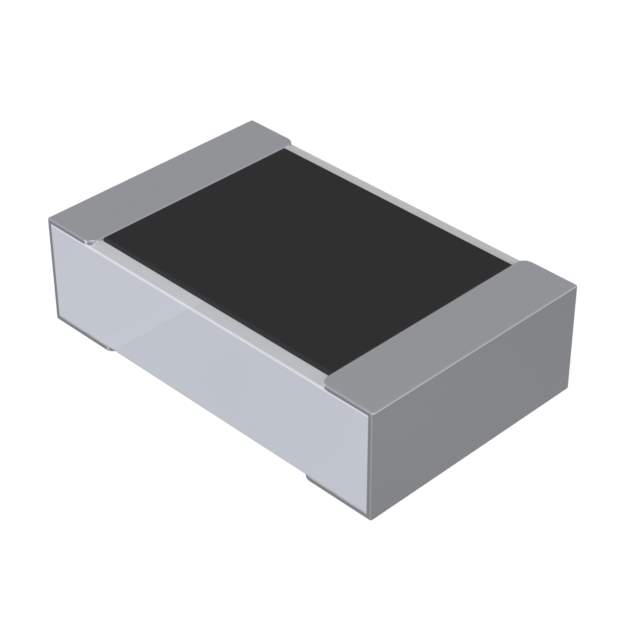

RN73C2A178KBTDF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series RN73, Holsworthy
Package Tape & Reel
Resistance 178 kOhms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number RN73C2A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 116144220,A103334CT,1-1614422-0-ND,A103334DKR,1-1614422-0,A103334TR
Standard Package 1,000
Win Source Part Number 1008347-RN73C2A178KBTDF
Ultra Librarian 3D Model Ultra Librarian RN73C2A178KBTDF CAD Model

Description

The RN73C2A178KBTDF is a chip resistor designed for surface mount applications. It is manufactured by TE Connectivity Passive Product and is part of the RN73 series.

  • Product: RN73C2A178KBTDF
  • Type: Chip Resistor
  • Mounting: Surface Mount
  • Manufacturer: TE Connectivity Passive Product
  • Series: RN73
  • Package: Tape and Reel
  • Standard Package: 1,000
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Resistance: 178 kOhms
  • Power Rating: 0.1W
