Same model may have multiple batches, images only for reference.

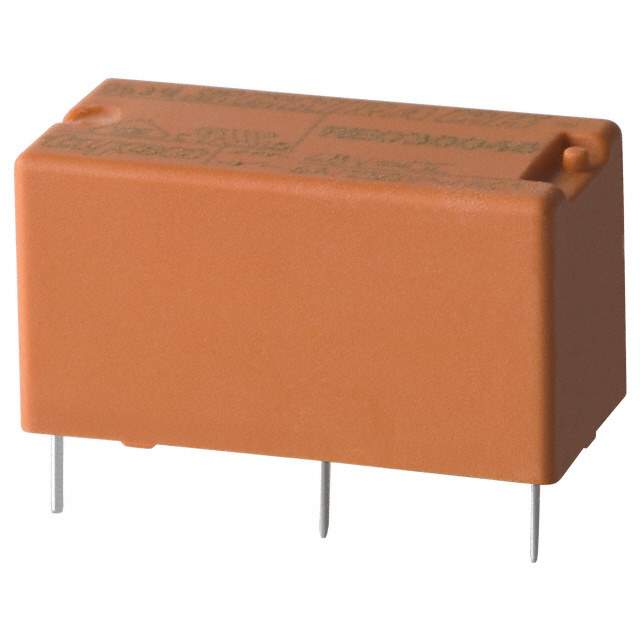

RE030048 Real Image
Same model may have multiple batches, images only for reference.

RE030048

Part No RE030048
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 6A 48V
Datasheet
RE030048 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 4.2mA
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 6A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 33.6 VDC
Turn Off Voltage (Min) 4.8 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 11.52 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 046150-RE030048
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name RE
Introduction Date February 14, 2006
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian RE030048 CAD Model

Description

The 046150-RE030048 is a high-quality general-purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Switching Voltage: Up to 400VAC
  • Contact Form: SPST-NO (1 Form A)
  • Mounting Type: Through-hole
  • Coil Voltage: 48VDC
  • Coil Resistance: 11.52 kOhms
  • Coil Current: 4.2mA
  • Operate Time: 10ms
  • Termination Method: PC pin
  • Insulation: Class F
  • Sealed: Fully sealed
  • Turn On Voltage (Max): 33.6 VDC
  • Turn Off Voltage (Min): 4.8 VDC
  • Release Time: 5ms
  • Coil Power: 200 mW
  • Alternative Parts (Cross-Reference): 2-1416010-8
  • RoHS Compliance: Yes
  • Temperature Range of Operation: -40°C to 70°C
  • Packaging: Tube/rail
