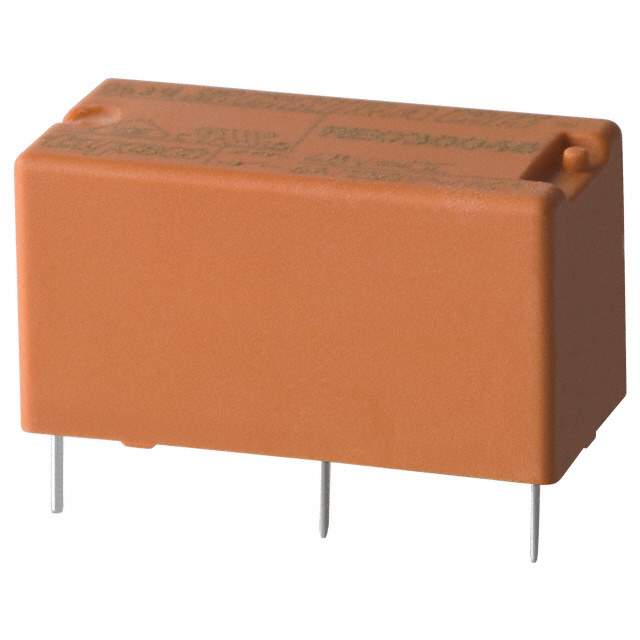

RE030012 Real Image
Same model may have multiple batches, images only for reference.

RE030012

Part No RE030012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 6A 12V
Datasheet
RE030012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 6A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 046149-RE030012
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RE030012 CAD Model

Description

The TE Connectivity Potter & Brumfield Relay is a general-purpose relay.

  • Contact Form: SPST
  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Coil Current: 16.7mA
  • Sealed: Fully sealed
  • Insulation Class: F
  • Switching Voltage: Up to 400VAC
  • Contact Rating: 6A
  • Operate Time: 10ms
  • Release Time: 5ms
  • Mounting Type: Through hole
  • Termination Style: PC pin
  • Operating Temperature Range: -40°C to 70°C
