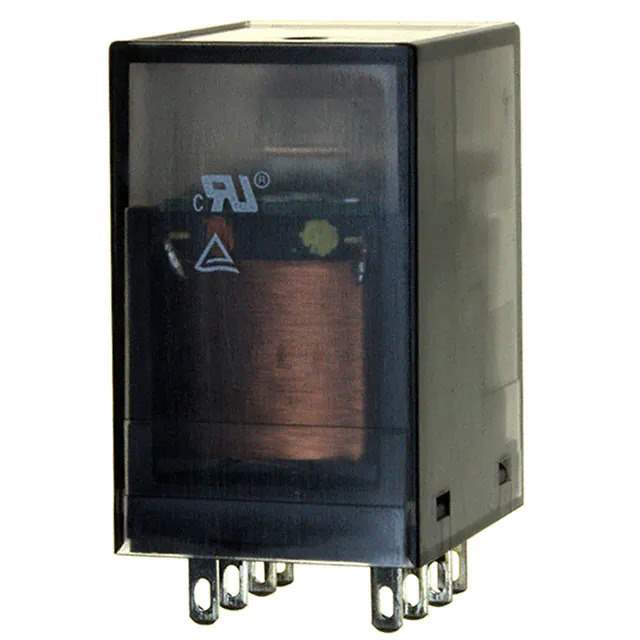

PT52B024B Real Image
Same model may have multiple batches, images only for reference.

PT52B024B

Part No PT52B024B
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 6A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series PTH, SCHRACK
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 30.8 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 777 Ohms
Base Product Number PT52B
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 847945-PT52B024B
Ultra Librarian 3D Model Ultra Librarian PT52B024B CAD Model

Description

The PT52B024B is a power relay from TE Connectivity.

  • Series: PTH
  • Contact Form: 4PDT (4 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Coil Voltage: 24VDC
  • Coil Resistance: 777 Ohms
  • Coil Current: 30.8 mA
  • Contact Rating: 6A
  • Switching Voltage: 250VAC
  • Operate and Release Time: 20ms
  • Mounting Type: Through-hole
  • Temperature Range: -45°C to 70°C
  • Package: Bulk package of 25 pcs
  • Product Status: Obsolete
