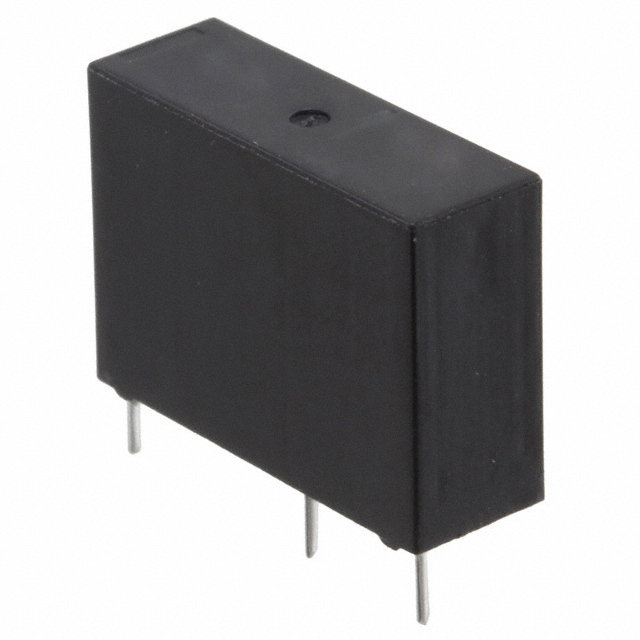

Same model may have multiple batches, images only for reference.
PCJ-124D3MH,301 TE Connectivity
Same model may have multiple batches, images only for reference.

PCJ-124D3MH,301

Part No PCJ-124D3MH,301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 24V
Datasheet
PCJ-124D3MH,301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class A, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 144594-PCJ-124D3MH,301
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCJ-124D3MH,301 CAD Model

Description

TE Connectivity Potter & Brumfield Relays 144594-PCJ-124D3MH,301 is a general-purpose relay with a single pole single throw (SPST-NO) contact form.

  • Coil Voltage: 24VDC
  • Contact Rating: 3A
  • Seal: sealed
  • Termination Style: PC pin
  • Latching: non-latching
  • Coil Power: 200mW
  • Supply and demand status: limited
