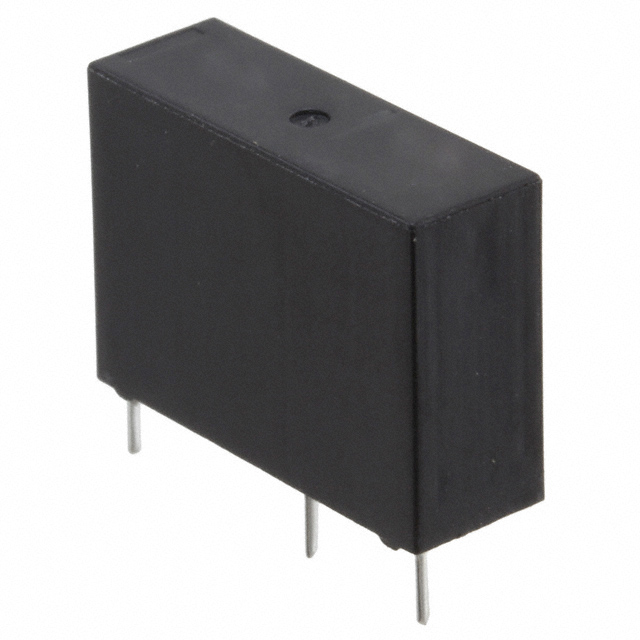

PCJ-112D3MH,301 TE Connectivity
Same model may have multiple batches, images only for reference.

PCJ-112D3MH,301

Part No PCJ-112D3MH,301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 12V
Datasheet
PCJ-112D3MH,301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class A, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 098837-PCJ-112D3MH,301
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PCJ-112D3MH,301 CAD Model

Description

The 098837-PCJ-112D3MH,301 is a general-purpose SPST-NO (1 Form A) relay from TE Connectivity Potter & Brumfield Relays.

  • Mounting Style: through-hole
  • Coil Voltage: 12VDC
  • Contact Rating: 3A
  • Switching Voltage: 250VAC and 30VDC @ max
  • Turn-On Voltage: 9VDC
  • Turn-Off Voltage: 0.6VDC
  • Operate Time: 10ms
  • Release Time: 4ms
  • Coil Resistance: 720 Ohms
  • Coil Current: 16.7mA
  • Coil Power: 200mW
  • Operating Temperature Range: -40°C to 85°C
