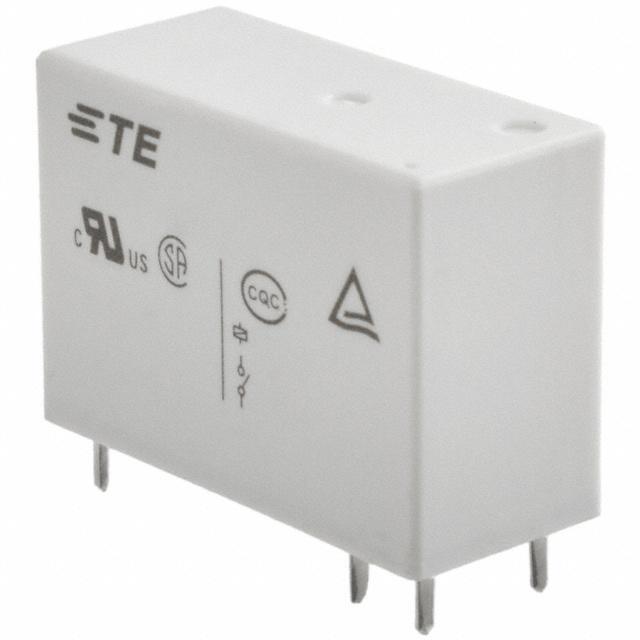

Same model may have multiple batches, images only for reference.
OZ-SS-124LM1,200 TE Connectivity
Same model may have multiple batches, images only for reference.

OZ-SS-124LM1,200

Part No OZ-SS-124LM1,200
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V / Power Relay 24VDC 16A SPST-NO(29.2x12.8x20.6)mm THT
Datasheet
OZ-SS-124LM1,200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series OZ, OEG
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 21.8mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 240VAC, 24VDC - Max
Turn On Voltage (Maximum) 18 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 20ms
Release Time 8ms
Features Insulation - Class A, Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 540 mW
Coil Resistance 1.1 kOhms
Operating Temperature Range -30°C ~ 70°C
Win Source Part Number 791071-OZ-SS-124LM1,200
Popularity Medium
Supply and Demand Status Limited
Family Name OZ-SS-124LM1,200
Introduction Date November 19, 2004
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian OZ-SS-124LM1,200 CAD Model

Description

It is a sealed-flux protection relay with insulation class A, PC pin termination style, and through-hole mounting style.

  • Insulation Class: A
  • Termination Style: PC pin
  • Mounting Type: Through-hole
  • Operating Temperature Range: -30°C to 70°C
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver tin oxide (AgSnO)
  • Coil Resistance: 1.1 kOhms
  • Coil Current: 21.8mA
  • Relay Type: General
  • Coil Type: Non-latching
  • Coil Voltage: 24VDC
  • Compliance: RoHS
  • Win Source Part Number: 791071-OZ-SS-124LM1,200
