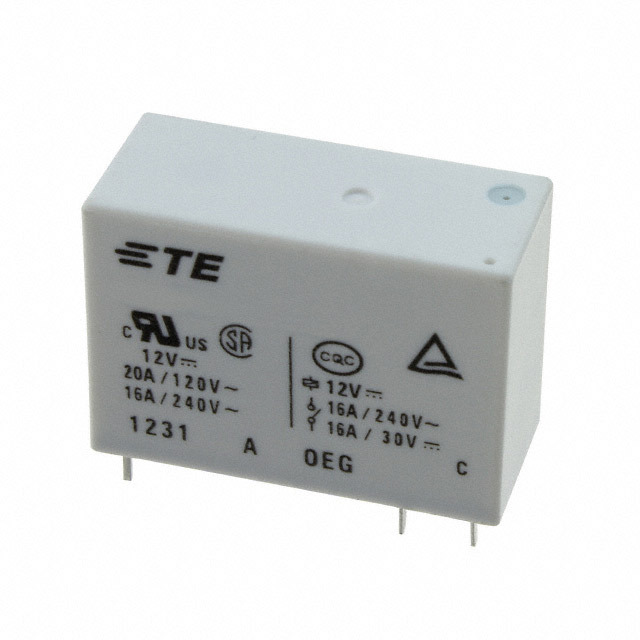

Same model may have multiple batches, images only for reference.
OZ-SH-112LM1,294 TE Connectivity
Same model may have multiple batches, images only for reference.

OZ-SH-112LM1,294

Part No OZ-SH-112LM1,294
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / Power Relay 12VDC 16A SPST-NO(29.2x12.8x20.6)mm THT
Datasheet
OZ-SH-112LM1,294 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series OZ, OEG
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 44.4mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 240VAC, 24VDC - Max
Turn On Voltage (Maximum) 9 VDC
Turn Off Voltage (Minimum) 0.6 VDC
Operate Time 20ms
Release Time 8ms
Features Insulation - Class A, Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 540 mW
Coil Resistance 270 Ohms
Operating Temperature Range -30°C ~ 70°C
Win Source Part Number 791069-OZ-SH-112LM1,294
Popularity Medium
Supply and Demand Status Limited
Family Name OZ-SH-112LM1,294
Introduction Date November 19, 2004
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian OZ-SH-112LM1,294 CAD Model

Description

The TE Connectivity Potter & Brumfield relay is a versatile and reliable component that is suitable for use in a wide range of applications.

  • Coil Voltage: 12VDC
  • Contact Rating: 16A
  • Insulation Class: A
  • Sealed: Fully sealed
  • Coil Type: Non-latching
  • Switching Voltage: 240VAC
  • Mounting Type: Through-hole
